Specifications

System
Wireless Transmission Analog UHF
Number of RF Channels 192
Included Transmitters 1 x Bodypack with Microphone
Diversity Non-Diversity
RF Frequency Band 514 to 596 MHz
RF Channel Scanning Auto-Scan
Max Operating Range  100 m (Line of Sight)
Max Systems per Setup 16
Built-In Recorder No
Latency 12 ms
Encryption None

Receiver
Form Factor Camera-Mount
Mounting Options Shoe-Mount (with Included Hardware)
Antenna 2 x 1/4 Wave Wire, Detachable (Top-Mount)
Number of Audio Channels 2
Audio I/O 3.5 mm TRS Female Unbalanced Output (Lockable)
 3.5 mm TRS Female Unbalanced Mic/Line Input (Lockable)
3.5 mm TRS Female Unbalanced Headphone Output (Lockable)
Audio Output Level -60 dBV
Frequency Response 40 Hz to 18 kHz ±3 dB
Word Clock I/O None
USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging)
Spurious Rejection: -60 dB
Power Requirements Battery, Bus Power (USB)
Battery Type 1 x Built-In Rechargeable (Included)
Internal Battery Capacity 2000 mAh
Approx. Battery Life 8 Hours
Display & Indicators 1 x OLED (AF Level, Battery Status, Channel)
Housing Metal
Operating Temperature  0 to 50°C
Storage Temperature  -20 to 55°C
Dimensions 220 x 64 x 25 mm
Weight  193 g

Transmitter 1
Transmitter
Form Factor Bodypack
RF Output Power 6 / 20 / 64 mW
Audio I/O 2 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
Muting Off/On Switch
Audio Input Level -4 to +20 dB (Mic Level)
-14 to +10 dB (Line Level)
Auto-Level Control No
Signal Processing High-Pass Filter:
150 Hz
Sync Method IR
Antenna 1 x 1/4 Wave Wire, Detachable (Beltpack)
Power Requirements Battery, Bus Power (USB)
Battery Type 1 x Rechargeable (Included)
Internal Battery Capacity 2000 mAh
Approx. Battery Life 10 Hours
USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging)
Display & Indicators 1 x OLED (Audio Level, Battery Status, Channel, Group, High-Pass Filter)
Operating Temperature  0 to 50°C
Storage Temperature  -20 to 55°C
Dimensions  220 x 64 x 25 mm
Weight 157 g

Microphone
Form Factor Lavalier
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 20 Hz to 18 kHz
SNR 58 dB
Sensitivity -40 dB at 1 Hz
Output Connectors 3.5 mm TRS Male Unbalanced (Lockable)
Cable Length 180 cm
Operating Temperature -20 to 60°C

In the Box

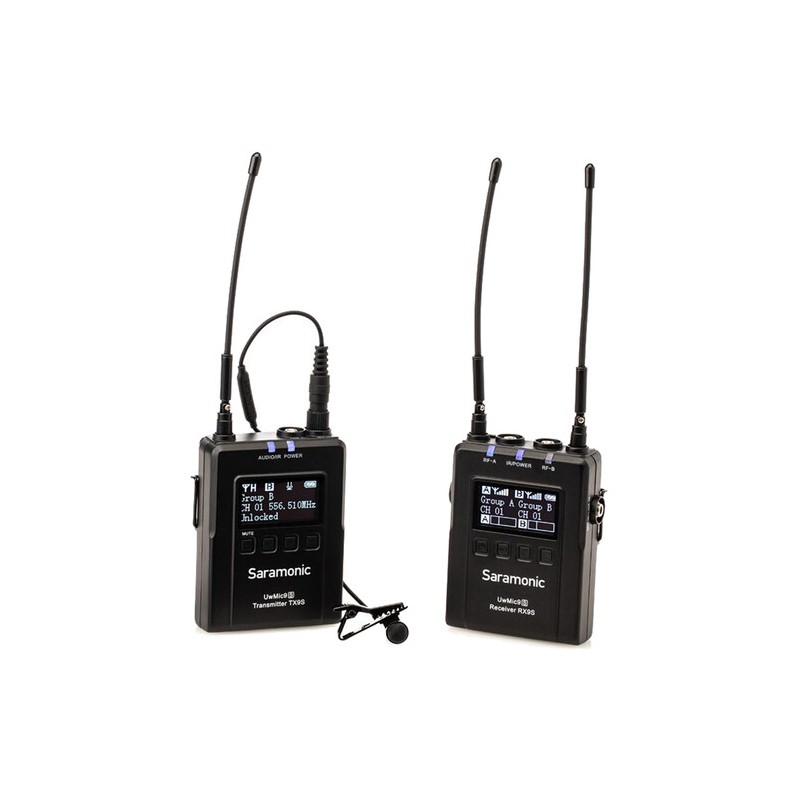

Saramonic UWMIC9S KIT1 Camera-Mount Wireless Omni Lavalier Microphone System (514 to 596 MHz)
RX9S Dual-Channel Receiver
TX9S Bodypack Transmitter
DK3A Omnidirectional Lavalier Microphone
2 x Alligator-Style Lavalier Microphone Clips
Fitted Metal Microphone Windscreen
2 x Foam Windscreens with Fitted Gaskets
2 x High-Wind Furry Windscreens with Elastic Fastening Clasps
3 x Antennas
2 x Belt Clips
Shoemount Adapter
Reusable Cable Wraps
SR-C2004 Dual Locking 3.5mm TRS to 3.5mm TRS Male Y-Cable (12")
SR-UM10-C35XLR Locking 3.5mm TRS Male to XLR Male Cable (1.3')
SR-UM10-C35 Locking 3.5mm TRS to 3.5mm TRS Coiled Cable (2.6')
2 x USB Type-A to USB Type-C Charging Cables (3.9')
SR-C6 Impact-Proof and Watertight Equipment Case
