Camera
Image Sensor: 1/1.3"-Type CMOS
Sensor Resolution: Effective: 48 Megapixel (7680 x 4320)
Optics:
35mm-Equivalent Focal Length
16mm
Maximum Aperture: f/2.6
Minimum Focus Distance: 350.0 cm
Fixed Focus: Yes
Angle of View: Wide: 151°

Recording
Media/Memory Card Slot
Single Slot: microSD/microSDHC/microSDXC (UHS-I) [1 TB Maximum / U3/V30 or Faster Recommended]
Video Format
7680 x 4320p at 24 fps
7680 x 3272p at 24 fps
4032 x 3024p at 24/25/30/48/50/60 fps
3840 x 2160p at 24/25/30/48/50/60/100/120 fps
2688 x 2016p at 24/25/30/48/50/60 fps
2688 x 1520p at 24/25/30/48/50/60/100/120 fps
1920 x 1440p at 24/25/30/48/50/60 fps
1920 x 1080p at 24/25/30/48/50/60/100/120/200/240 fps
Slow Motion Mode
120 fps Recorded at 3840 x 2160p
100 fps Recorded at 3840 x 2160p
120 fps Recorded at 2688 x 1520p
100 fps Recorded at 2688 x 1520p
240 fps Recorded at 1920 x 1080p
200 fps Recorded at 1920 x 1080p
120 fps Recorded at 1920 x 1080p
100 fps Recorded at 1920 x 1080p
Still Image Support
DNG / JPEG / Raw
48 MP (8064 x 6048)
36 MP (8064 x 4536)
12 MP (4032 x 3024)
9 MP (4032 x 2264)
Channels: 3.0-Channel
Audio Format: AAC
Sampling Frequency: AAC: 48.0 kHz
Bit Rate: AAC: 16.0-Bit
IP Streaming: No

Display
Display Type: Tilting Touchscreen LCD
Display Size: 2.4"
Secondary Display: Front: 0.9" LCD Status Display

Exposure Control
Shutter Speed: 1/8000 to 120 Seconds in Photo/Video Mode
ISO Sensitivity Range: 100 to 6400
Exposure Modes: Modes: Auto, Manual, Scene Modes
Shooting Modes: Time-Lapse Movie
Interval Recording: No
Burst Photo: No
Continuous Shooting: No
Self-Timer: No
Remote Control: No

Features
Image Stabilization: Digital
Scene Modes: Preset: Yes
Environmental Protection
Advertised as Water Resistant/Submersible to 32.8' / 10 m
*Manufacturer Testing:
White Balance Modes: Auto
Creative Effects: Yes
Built-In Mic: Yes
Built-In Speaker: No
Built-In Light/Flash:
Light - No
Flash - No
Wireless
2.4 / 5 GHz Wi-Fi (802.11a/b/g),
Wi-Fi 4 (802.11n),
Wi-Fi 5 (802.11ac),
Bluetooth Video Output,
Audio Output,
Control
Mobile App Compatible: Yes: Android & iOS
Accessory Shoe: No
Input/Output Connectors: Inputs
1 x USB-C 3.1/3.2 Gen 2
Microphone Input: Via USB Adapter
Headphone Jack: No

General
Battery:
Rechargeable Lithium-Ion Battery Pack, 5 VDC, 1650 mAh
Max Runtime: 2 Hours per Charge
Battery Charge Time: 1 hours
Charging Method: USB
Charging Time: 1 Hours
Operating Temperature: -20 to 40°C
Dimensions (W x H x D): 71.9 x 52.15 x 38.5 mm
Weight: 179.8 g

Packaging Info
Package Weight: 532g
Box Dimensions (LxWxH): 8.4 x 3.9 x 2.5"

In the Box

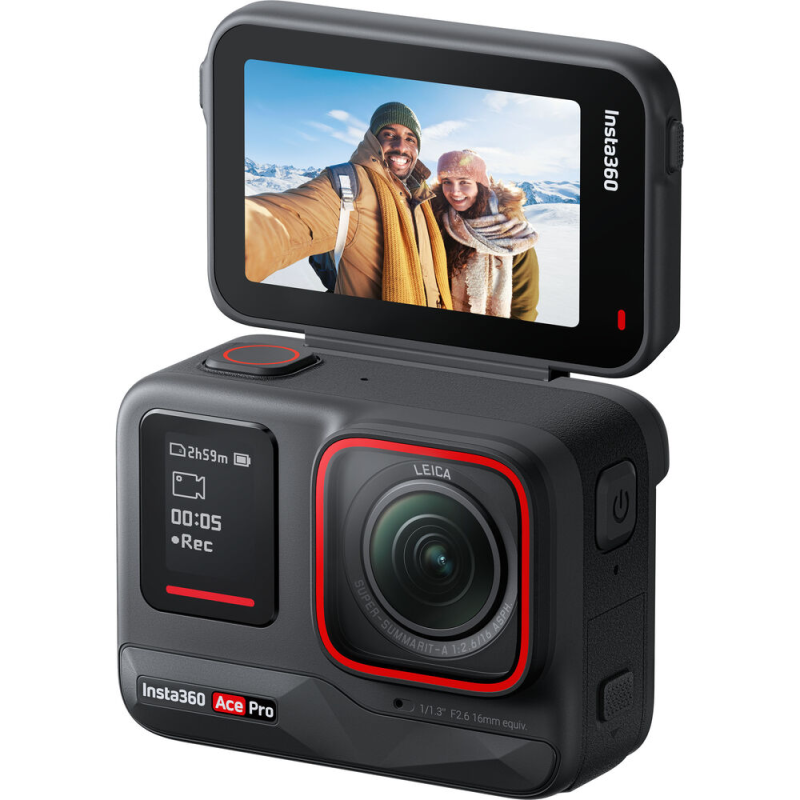

Insta360 Ace Pro Action Camera
1650mAh Battery
Standard Action Mount
Flexible Adhesive Mount
USB-C to USB-C Cable
