Specifications

Imaging
Lens Mount Canon RF
Lens Communication Yes, with Autofocus Support
Sensor Resolution Actual: 47.1 Megapixel
Effective: 45 Megapixel (8192 x 5464)
Sensor Type 36 x 24 mm (Full-Frame) CMOS
Pixel Pitch 5.5 µm
Image Stabilization Digital (Video Only)
Built-In ND Filter None
Internal Filter Holder No
Capture Type Stills & Video

Exposure Control
Shutter Type Electronic Shutter, Focal Plane Shutter
Shutter Speed Mechanical Shutter: 1/8000 to 30 Seconds, Electronic Front Curtain Shutter, 1/8000 to 30 Seconds, Electronic Shutter 1/8000 to 0.5 Seconds
Bulb/Time Mode Bulb Mode
ISO Sensitivity Photo, 100 to 51,200 in Manual Mode (Extended: 50 to 102,400) 100 to 25,600 in Auto Mode (Extended: 200 to 51,200)
Metering Method Center-Weighted Average, Evaluative, Partial, Spot
Exposure Modes Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation -3 to +3 EV (1/3, 1/2 EV Steps)
Metering Range -3 to 20 EV
Continuous Shooting Mechanical Shutter Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG)
Electronic Shutter   Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG)
Interval Recording Yes
Self-Timer 2/10-Second Delay

Internal Video Capture
Raw Recording Cinema RAW Light 8192 x 5464 at 23.976/24.00/25/29.97/50/59.94 fps [1030 to 2570 Mb/s] 5952 x 3140 at 23.976/24.00/29.97/30/50/59.94 fps [544 to 1360 Mb/s] 2976 x 1570 at 23.976/24.00/25/29.97/30/50/59.94 fps [138 to 344 Mb/s]
Recording Modes Raw 12-Bit DCI 8K (8192 x 4320) at 23.98p/24.00p/25p/29.97p [2600 Mb/s]
AVC-Intra/AVC-LongG/XF-AVC 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/59.94p/100p/119.88p [160 to 810 Mb/s]
UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p/100p/119.88p [160 to 810 Mb/s]
Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p [50 to 310 Mb/s]
HD (1280 x 720) at 50p/59.94p [8 to 12 Mb/s] AVC-LongG/MP4 4:2:2 10-Bit
DCI 8K (8192 x 4320) at 23.98p/24.00p/25p/29.97p [400 to 540 Mb/s]
UHD 8K (7680 x 4320) at 23.98p/25p/29.97p [400 to 540 Mb/s]
DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p/100p/119.88p [100 to 225 Mb/s]
UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p/119.88p [100 to 225 Mb/s]
DCI 2K (2048 x 1080) at 23.98p/24.00p/25p/29.97p/50p/59.94p [35 to 50 Mb/s]
Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p [35 to 50 Mb/s] HD (1280 x 720) at 50p/59.94p [8 to 12 Mb/s]
AVC-LongG/MP4 4:2:0 8-Bit
DCI 4K (4096 x 2160) at 23.98PsF/24.00p/25p/29.97p/50p/59.94p/119.88p [100 to 225 Mb/s]
UHD 4K (3840 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p [100 to 225 Mb/s]
DCI 2K (2048 x 1080) at 23.98p/24.00p/25p/29.97p/50p/59.94p [35 to 50 Mb/s]
Full HD (1920 x 1080) at 23.98p/24.00p/29.97p/50p/59.94p [35 to 50 Mb/s]
HD (1280 x 720) at 50p/59.94p [8 to 12 Mb/s]
Sensor Crop Modes Super35 / APS-C
5952 x 3184
4096 x 2160
3840 x 2160
Super16
2976 x 1570
Gamma Curve Canon Log 3, HDR-HLG, HDR-PQ, Rec2020, Rec709
Recording Limit Unlimited
Video System NTSC/PAL

External Video Capture
External Recording Modes 4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) up to 59.94p
UHD 4K (3840 x 2160) up to 59.94p
IP Streaming None

Still Image Capture
Image Sizes 3:2 Raw 8192 x 5464, 5088 x 3392, 3:2, 8192 x 5464, 5808 x 3872, 4176 x 2784, 2400 x 1600, 4:3, 7280 x 5464, 5152 x 3872, 3715 x 2784, 2112 x 1600, 16:9, 8192 x 4608, 5808 x 3264, 4176 x 2344, 2400 x 1344, 1:1, 5456 x 5456, 3872 x 3872, 2784 x 2784, 1600 x 1600
Aspect Ratio 1:1, 3:2, 4:3, 16:9
Image File Format JPEG, Raw, HEIF
Bit Depth 10-Bit

Interface
Media/Memory Card Slot Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC (UHS-II)
Video I/O 1 x Micro-HDMI Output
Audio I/O 1 x 3.5 mm TRS Stereo Mic/Line Input
1 x 3.5 mm TRS Stereo Headphone Output
Power I/O 1 x USB Type-C (9 VDC at 3 A) Input
Other I/O 1 x USB Type-C USB 3.2 / 3.1 Gen 2 (Shared with Power Input)
Wireless Bluetooth Control
2.4 / 5 GHz Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), Wi-Fi (802.11b/g), Wi-Fi Video Output, Control
Global Positioning (GPS, GLONASS, etc.) None

Monitor
Size 3.2"
Resolution 2,100,000 Dot
Display Type Free-Angle Tilting Touchscreen LCD

Viewfinder
Type Built-In Electronic (OLED)
Size 0.5"
Resolution 5,790,000 Dot
Eye Point 23 mm
Coverage 100%
Magnification Approx. 0.76x
Diopter Adjustment -4 to +2

Focus
Focus Type Auto and Manual Focus
Focus Mode Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
Autofocus Points Phase Detection: 1053
Autofocus Sensitivity -6 to +20 EV
Built-In Flash No
Maximum Sync Speed 1/250 Second
Flash Compensation -3 to +3 EV (1/3, 1/2 EV Steps)
Dedicated Flash System eTTL
External Flash Connection Hot Shoe

Environmental
Operating Temperature  0 to 40°C
Operating Humidity 0 to 85%

General
Battery Type Canon LP-E6N
Tripod Mounting Thread 1 x 1/4"-20 Female (Bottom)
Accessory Mount 1 x Intelligent Hot Shoe

In the Box

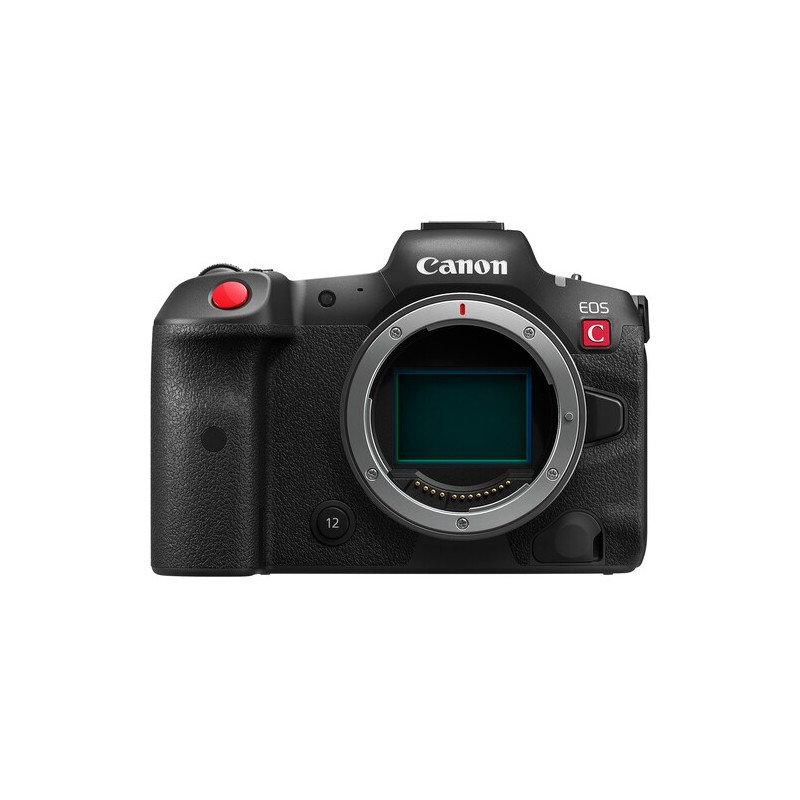

Canon EOS R5 C Mirrorless Cinema Camera
Canon LP-E6NH Lithium-Ion Battery (7.2V, 2130mAh)
Canon LC-E6 Charger for LP-E6 Battery Pack
Canon IFC-100U Interface Cable (39.4")
Cable Protector
SS-1200 Shoulder Strap
Canon R-F-5 Camera Cover
