Aputure LS 300X Specs

For Film, Broadcast and Video Production
Output: 20,500 Lux at 3.3' w/ Reflector
2700-6500K CCT
AC or Battery Power
Onboard, Wireless, DMX & App Control
CRI 96 | TLCI 96 | CQS 95 | SSI 85
Active Cooling
Bowens S Accessory Mount
9 Preset Special Effects
Includes Remote, Reflector, Clamp & Bag

Key Specs

Item Type: 1 x LED Monolight
Included Storage Case: 1 x Case
Photometrics
105° at 3200K:
473 fc / 5100 Lux at 1 m
53 fc / 580 Lux at 3 m
20 fc / 220 Lux at 5 m
105° at 5600K:
585 fc / 6300 Lux at 1 m
65 fc / 700 Lux at 3 m
23 fc / 250 Lux at 5 m
3200K:
1504 fc / 16,200 Lux at 1 m (with Reflector)
120 fc / 1300 Lux at 3 m (with Reflector)
41 fc / 450 Lux at 5 m (with Reflector)
5600K:
1904 fc / 20,500 Lux at 1 m (with Reflector)
157 fc / 1700 Lux at 3 m (with Reflector)
51 fc / 550 Lux at 5 m (with Reflector)
Color Temperature: 2700 to 6500K
Color Modes: Daylight, Tungsten
Color Accuracy Standard
CRI 96
TLCI 96
CQS 95
Dimming:
App-Controlled / Controller Included / DMX (Continuous)
• 0 to 100%
Beam Angle: 105°
Front Accessory Mount: Bowens S
Wireless Remote Control Type:
Bluetooth
Radio/RF *Remote Included
Power Source:
AC Power (Cable Included)
Battery (Not Included)
Battery Plate Type: 2 x V-Mount (Built-In)
Battery: 2 x V-Mount Rechargeable, 14.4 VDC (Not Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Power Consumption: 350 W
Fixture Mounting: 1 x 1.5cm Receiver (Via Yoke Mount)

Light Fixture
Item Type: 1 x LED Monolight
Included Storage Case: 1 x Case
Lumens: 56,000
Photometrics
105° at 3200K:
473 fc / 5100 Lux at 1 m
53 fc / 580 Lux at 3 m
20 fc / 220 Lux at 5 m
105° at 5600K:
585 fc / 6300 Lux at 1 m
65 fc / 700 Lux at 3 m
23 fc / 250 Lux at 5 m
3200K:
1504 fc / 16,200 Lux at 1 m (with Reflector)
120 fc / 1300 Lux at 3 m (with Reflector)
41 fc / 450 Lux at 5 m (with Reflector)
5600K:
1904 fc / 20,500 Lux at 1 m (with Reflector)
157 fc / 1700 Lux at 3 m (with Reflector)
51 fc / 550 Lux at 5 m (with Reflector)
Color Temperature: 2700 to 6500K
Color Modes: Daylight, Tungsten
Color Accuracy Standard:
CRI 96
TLCI 96
CQS 95
Cooling System: Fan
Dimming
App-Controlled / Controller Included / DMX (Continuous)
• 0 to 100%
Beam Angle: 105°
Built-In Flash: No
Umbrella Mount: No
Front Accessory Mount: Bowens S

Connectivity
Wireless Remote Control Type:
Bluetooth
Radio/RF *Remote Included
Mobile App Compatible"
Yes: Android & iOS
App Name: Sidus Link
Functionality: Remote Control
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Wireless Channels: 3
Wireless Groups: 4
Wireless Frequency: 2.4 GHz
Wireless Range: 100 m
Max DMX Control Channels: 6

Power & I/O
Power Source:
AC Power (Cable Included)
Battery (Not Included)
Inputs/Outputs:
Light Fixture 1 x XLR 5-Pin Power Input
Power Supply/Controller
1 x powerCON Power Input
1 x XLR 5-Pin Power Output
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
Battery Plate Type: 2 x V-Mount (Built-In)
Battery: 2 x V-Mount Rechargeable, 14.4 VDC (Not Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable:
1 x Edison Plug to powerCON Cable (19.7' / 6 m)
1 x XLR 5-Pin Male to XLR 5-Pin Female Cable (9.8' / 3 m)
Inline Switch: No
Power Pass-Thru: No
Power Consumption: 350 W

Mounting
Yoke Type: Manually-Operated Yoke (180° Tilt)
Fixture Mounting: 1 x 1.6 cm Receiver (Via Yoke Mount)

Environmental
Environmental Protection: No

General
Display: LCD
Certifications: RoHS, CE, CE RED, KC, PSE, FCC, cTUVus
Materials: Aluminum (Housing)
Dimensions:
12.7 x 9.7 cm (Power Supply/Controller)
34.5 x 29.8 x 21.6 cm (Fixture)
Weight: 11.4 kg

Packaging Info
Package Weight: 11.33 Kg
Box Dimensions (LxWxH): 62.4 x 30 x 27.4 cm

In the Box

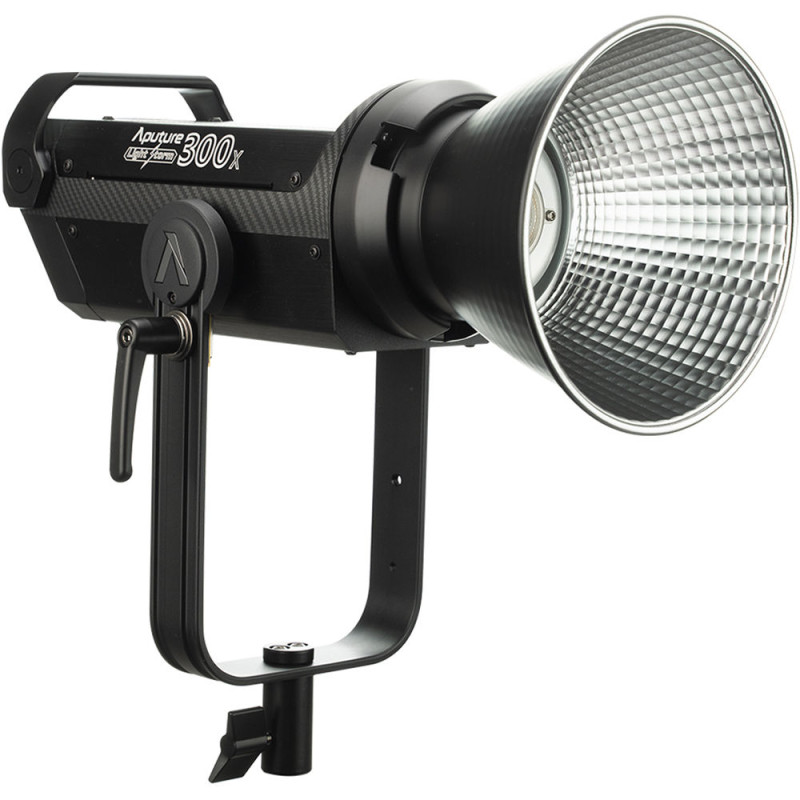

Aputure LS 300x Bi-Color LED Monolight (V-Mount)
Control Box
Hyper Reflector (55°)
Neutrik powerCON AC Power Cable 50 cm
5-Pin Male-to-Female XLR Head Cable 25 cm
Cable Relief Hook
VA Remote RC1+
Quick Release Lightning Clamp
Carry Case
