Canon R1 Specs

Lens Mount
Canon RF
Sensor Resolution
Actual: 26.7 Megapixel
Effective: 24.2 Megapixel
Image Sensor
36 x 24 mm (Full-Frame) BSI Stacked CMOS
Image Stabilization
Sensor-Shift, 5-Axis
ISO Sensitivity Range
100 to 102,400 (Extended: 50 to 409,600)
Continuous Shooting
Electronic Shutter
Up to 40 fps at 24.2 MP
Mechanical Shutter
Up to 12 fps at 24.2 MP
Internal Recording Modes
Raw 12-Bit
6000 x 3164 at 23.98/24.00/25/29.97/50/59.94 fps
MP4/XF-AVC S/XF-HEVC S 4:2:2/4:2:0 8/10-Bit
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/120 fps
DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps
1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/200/240 fps
External Recording Modes
4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps
Media/Memory Card Slot
Dual Slot: CFexpress Type B (CFexpress 2.0) [VPG-400 or Faster Recommended]
Video I/O
1x HDMI (Unspecified Signal) Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O
1x USB-C Input
Other I/O
1x USB-C (USB 3.2 / 3.1 Gen 2) Control/Data/Tether Input/Output (Shared with Power Input)
1x RJ45 (Ethernet) Data Output
Wireless
2.4 / 5 / 6 GHz Wi-Fi 6 (802.11ax), Bluetooth 5.3 Control
Display Type
Articulating Touchscreen LCD
Battery Type
1x LP-E19 Rechargeable Lithium-Ion, 10.8 VDC, 2750 mAh
Imaging
Lens Mount
Canon RF
Sensor Resolution
Actual: 26.7 Megapixel
Effective: 24.2 Megapixel
Image Sensor
36 x 24 mm (Full-Frame) BSI Stacked CMOS
Sensor Crop (35mm Equivalent)
Crop Factor: 1x
*Additional Crop Occurs in Select Video Modes
Image Stabilization
Sensor-Shift, 5-Axis
Built-In ND Filter
No
Capture Type
Stills & Video
Exposure Control
Shutter Type
Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed
Electronic Shutter
1/64000 to 30 Seconds
1/16000 to 30 Seconds in Manual Mode
1/16000 to 30 Seconds in Shutter Priority Mode
Electronic Front Curtain Shutter
1/8000 to 30 Seconds
Mechanical Shutter
1/8000 to 30 Seconds
Bulb/Time Mode
Bulb Mode
ISO Sensitivity Range
100 to 102,400 (Extended: 50 to 409,600)
Metering Method
Center-Weighted Average, Evaluative, Partial, Spot
Exposure Modes
Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation
-3 to +3 EV (1/3, 1/2 EV Steps)
Metering Range
-3 to 20 EV
White Balance
Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
Continuous Shooting
Electronic Shutter
Up to 40 fps at 24.2 MP
Mechanical Shutter
Up to 12 fps at 24.2 MP
Interval Recording
Yes
Self-Timer
2/10-Second Delay
Still Image Capture
Image Sizes
3:2 HEIF / JPEG / Raw
24.2 MP (6000 x 4000)
Aspect Ratio
3:2
Image File Format
HEIF, JPEG, Raw
Video Capture
Internal Recording Modes
Raw 12-Bit
6000 x 3164 at 23.98/24.00/25/29.97/50/59.94 fps
MP4/XF-AVC S/XF-HEVC S 4:2:2/4:2:0 8/10-Bit
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/120 fps
DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps
1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/200/240 fps
External Recording Modes
4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps
Fast-/Slow-Motion Support
Slow-Motion Only
Gamma Curve
Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, Rec709, Rec2020
Recording Limit
No
IP Streaming
No
Built-In Microphone
Stereo
Audio Recording
Raw: 4-Channel 24-Bit LPCM Audio
2-Channel 16-Bit AAC Audio

Interface
Media/Memory Card Slot
Dual Slot: CFexpress Type B (CFexpress 2.0) [VPG-400 or Faster Recommended]
Video I/O
1x HDMI (Unspecified Signal) Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O
1x USB-C Input
Other I/O
1x USB-C (USB 3.2 / 3.1 Gen 2) Control/Data/Tether Input/Output (Shared with Power Input)
1x RJ45 (Ethernet) Data Output
Wireless
2.4 / 5 / 6 GHz Wi-Fi 6 (802.11ax), Bluetooth 5.3 Control
Mobile App Compatible
Yes: Android & iOS
App Name: Canon Camera Connect
Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed
Global Positioning (GPS, GLONASS, etc.)
GPS
*Via Connected Smartphone
Monitor
Display Size
3.2"
Resolution
2,100,000 Dot
Display Type
Articulating Touchscreen LCD
Secondary Display
Top: LCD Status Display
Viewfinder
Type
Built-In Electronic (OLED)
Size
0.5"
Resolution
9,440,000 Dot
Eye Point
25 mm
Coverage
100%
Magnification
Approx. 0.9x
Diopter Adjustment
-4 to +2
Focus
Focus Type
Auto and Manual Focus
Focus Mode
Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points
Phase Detection: 4897
Video
Phase Detection: 4067
Autofocus Sensitivity
-7.5 to +21 EV
Flash
Built-In Flash/Light
No
Maximum Sync Speed
1/320 Second
Flash Compensation
-3 to +3 EV (1/3, 1/2 EV Steps)
Dedicated Flash System
eTTL
External Flash Connection
Shoe Mount
Environmental
Operating Temperature
32 to 113°F / 0 to 45°C
Operating Humidity
0 to 85%

General
Battery Type
1x LP-E19 Rechargeable Lithium-Ion, 10.8 VDC, 2750 mAh
Shoe Mount
1x Hot Shoe
Tripod Mounting Thread
1x 1/4"-20 Female (Bottom)
Material of Construction
Magnesium Alloy
Dimensions (W x H x D)
6.2 x 5.9 x 3.4" / 157.6 x 149.5 x 87.3 mm
Weight
2.5 lb / 1115 g (With Battery, Recording Media)
2.0 lb / 920 g (Body Only)

In the Box

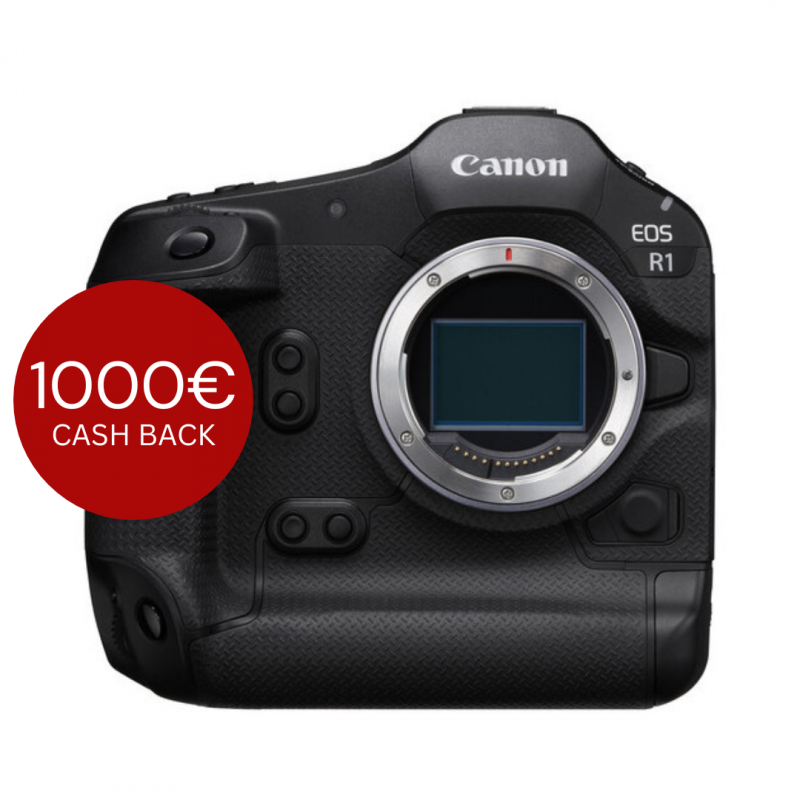

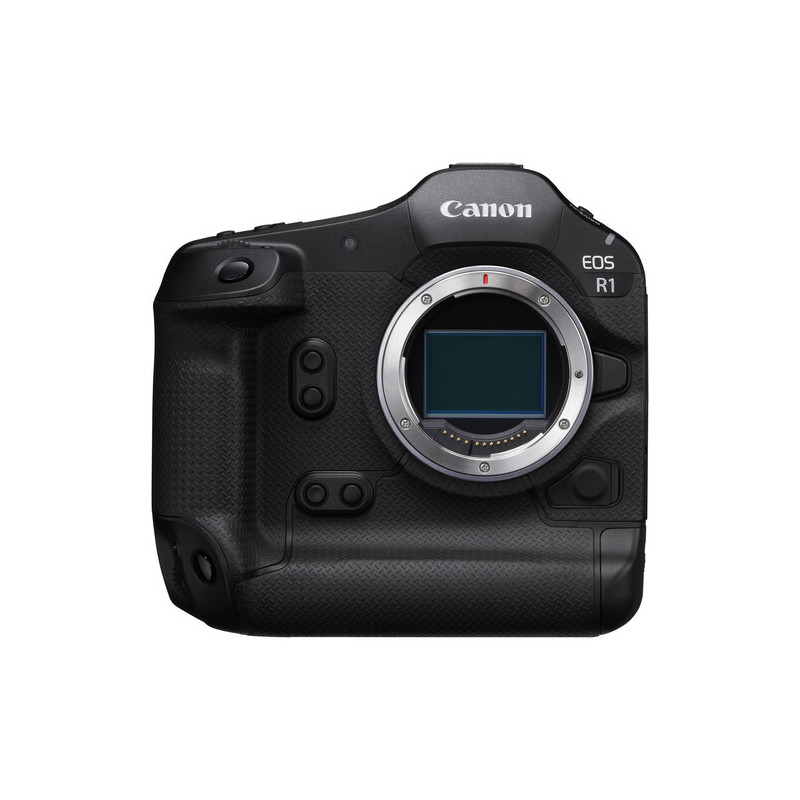

Canon EOS R1 Mirrorless Camera
Canon LP-E19 Battery Pack (2700mAh)
Canon LC-E19 Battery Charger
Canon ER-L1 Camera Strap
Canon ER-iE Eyecup
Canon ER-SC3 Shoe Cover
Canon R-F-5 Camera Cover
Canon IFC-100U Interface Cable (39.4")
Battery Pack Cover
Power Cord
