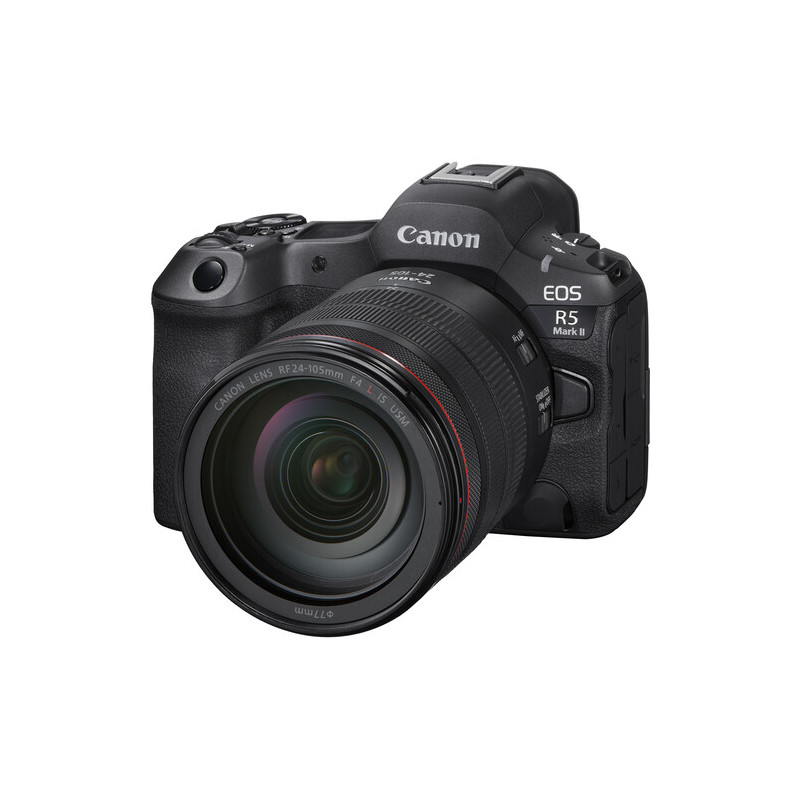

Canon R5 Mark II 24-105mm Specs

Sensor Resolution
Actual: 50.3 Megapixel
Effective: 45 Megapixel
Image Sensor
36 x 24 mm (Full-Frame) BSI Stacked CMOS
Image Stabilization
Sensor-Shift, 5-Axis
ISO Sensitivity Range
100 to 51,200 (Extended: 50 to 102,400)
Continuous Shooting
Electronic Shutter
Up to 30 fps at 45 MP for up to 200 Frames (JPEG) / 93 Frames (Raw)
Mechanical Shutter
Up to 12 fps at 45 MP for up to 760 Frames (JPEG) / 230 Frames (Raw)
Show More
Internal Recording Modes
Raw 12-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97/50/59.94 fps
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps
H.264/MP4/XF-AVC S/XF-HEVC S 4:2:2/4:2:0 8/10-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/120 fps
DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps
1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/200/240 fps
External Recording Modes
4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) up to 59.94 fps
UHD 4K (3840 x 2160) up to 59.94 fps
Media/Memory Card Slot
Slot 1: CFexpress Type B (CFexpress 2.0) [2 TB Maximum / VPG-400 or Faster Recommended]
Slot 1: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]
Video I/O
1x HDMI (Unspecified Signal) Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body
1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body
Power I/O
1x USB-C (5VDC at 1.5 A) Input
Other I/O
1x USB-C (USB 3.2 / 3.1 Gen 2) Data Input/Output (Shared with Power Input)
1x Canon N3 Control Input
1x PC Sync Socket FlashSync
Wireless
2.4 / 5 / 6 GHz Wi-Fi 6 (802.11ax), Bluetooth 5.0
Display Type
Articulating Touchscreen LCD
Battery Type
1x LP-E6P Rechargeable Lithium-Ion
or
1x LP-E6NH Rechargeable Lithium-Ion
or
1x LP-E6N Rechargeable Lithium-Ion
Imaging
Lens Mount
Canon RF
Sensor Resolution
Actual: 50.3 Megapixel
Effective: 45 Megapixel
Image Sensor
36 x 24 mm (Full-Frame) BSI Stacked CMOS
Sensor Crop (35mm Equivalent)
Crop Factor: 1x
Additional Modes: 1.6x
*Additional Crop Occurs in Select Video Modes
Image Stabilization
Sensor-Shift, 5-Axis
Built-In ND Filter
No
Capture Type
Stills & Video
Exposure Control
Shutter Type
Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed
Electronic Shutter
1/32000 to 30 Seconds
Electronic Front Curtain Shutter
1/8000 to 30 Seconds
Mechanical Shutter
1/8000 to 30 Seconds
Bulb/Time Mode
Bulb Mode
ISO Sensitivity Range
100 to 51,200 (Extended: 50 to 102,400)
Metering Method
Center-Weighted Average, Evaluative, Partial, Spot
Exposure Modes
Aperture Priority, Auto, Manual, Program, Shutter Priority
Exposure Compensation
-3 to +3 EV (1/3, 1/2 EV Steps)
Metering Range
-3 to 20 EV
White Balance
Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
Continuous Shooting
Electronic Shutter
Up to 30 fps at 45 MP for up to 200 Frames (JPEG) / 93 Frames (Raw)
Mechanical Shutter
Up to 12 fps at 45 MP for up to 760 Frames (JPEG) / 230 Frames (Raw)
Interval Recording
Yes
Self-Timer
2/10-Second Delay
Still Image Capture
Image Sizes
3:2 HEIF / JPEG / Raw
44.8 MP (8192 x 5464)
24 MP (6000 x 4000)
17.3 MP (5088 x 3392)
11.6 MP (4176 x 2784)
3.8 MP (2400 x 1600)
1:1 HEIF / JPEG
29.8 MP (5456 x 5456)
16 MP (4000 x 4000)
7.8 MP (2784 x 2784)
2.6 MP (1600 x 1600)
4:3 HEIF / JPEG
39.8 MP (7280 x 5464)
21.3 MP (5328 x 4000)
10.3 MP (3172 x 2784)
3.4 MP (2112 x 1600)
16:9 HEIF / JPEG
37.7 MP (8192 x 4608)
20.2 MP (6000 x 3386)
9.8 MP (4176 x 2344)
3.2 MP (2400 x 1344)
Aspect Ratio
1:1, 3:2, 4:3, 16:9
Image File Format
HEIF, JPEG, Raw
Bit Depth
14-Bit
Video Capture
Internal Recording Modes
Raw 12-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97/50/59.94 fps
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps
H.264/MP4/XF-AVC S/XF-HEVC S 4:2:2/4:2:0 8/10-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/120 fps
DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps
1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/200/240 fps
External Recording Modes
4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) up to 59.94 fps
UHD 4K (3840 x 2160) up to 59.94 fps
Fast-/Slow-Motion Support
Slow-Motion Only
Gamma Curve
Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, Rec709, Rec2020
Recording Limit
No
IP Streaming
No
Built-In Microphone
Mono
Audio Recording
2-Channel 16-Bit 48 kHz AAC Audio
4-Channel 24-Bit 48 kHz LPCM Audio

Interface
Media/Memory Card Slot
Slot 1: CFexpress Type B (CFexpress 2.0) [2 TB Maximum / VPG-400 or Faster Recommended]
Slot 1: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]
Video I/O
1x HDMI (Unspecified Signal) Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body
1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body
Power I/O
1x USB-C (5VDC at 1.5 A) Input
Other I/O
1x USB-C (USB 3.2 / 3.1 Gen 2) Data Input/Output (Shared with Power Input)
1x Canon N3 Control Input
1x PC Sync Socket FlashSync
Wireless
2.4 / 5 / 6 GHz Wi-Fi 6 (802.11ax), Bluetooth 5.0
Mobile App Compatible
Yes: Android & iOS
App Name: Canon Camera Connect
Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed
Global Positioning (GPS, GLONASS, etc.)
GPS
*Via Connected Smartphone
Monitor
Display Size
3.2"
Resolution
2,100,000 Dot
Display Type
Articulating Touchscreen LCD
Secondary Display
Top: Status Display
Viewfinder
Type
Built-In Electronic (OLED)
Size
0.5"
Resolution
5,760,000 Dot
Eye Point
24 mm
Coverage
100%
Magnification
Approx. 0.76x
Diopter Adjustment
-4 to +2
Focus
Focus Type
Auto and Manual Focus
Focus Mode
Continuous-Servo AF, Manual Focus, One-Shot AF, Single-Servo AF
Autofocus Points
Phase Detection: 1053
Video
Phase Detection: 975
Autofocus Sensitivity
-7.5 to +21 EV
Flash
Built-In Flash/Light
No
Maximum Sync Speed
1/250 Second
Flash Compensation
-3 to +3 EV (1/3, 1/2 EV Steps)
Dedicated Flash System
eTTL
External Flash Connection
Shoe Mount
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
85%
General
Battery Type
1x LP-E6P Rechargeable Lithium-Ion
or
1x LP-E6NH Rechargeable Lithium-Ion
or
1x LP-E6N Rechargeable Lithium-Ion
Shoe Mount
1x Hot Shoe / Tripod Mounting Thread

Canon EOS R5 Mark II Mirrorless Camera
Camera Strap
Canon R-F-5 Camera Cover
Canon ER-kE Eyecup
Canon ER-SC3 Shoe Cover
Canon LP-E6P Lithium-Ion Battery
Canon LC-E6 Charger for LP-E6 and LP-EL Battery Packs
Battery Pack Cover
Canon IFC-100U Interface Cable (39.4")
Power Cord
Canon RF 24-105mm f/4 L IS USM Lens
Canon E-77 II Lens Cap
Canon Lens Dust Cap RF
Canon EW-83N Lens Hood
Canon Lens Case LP1319
