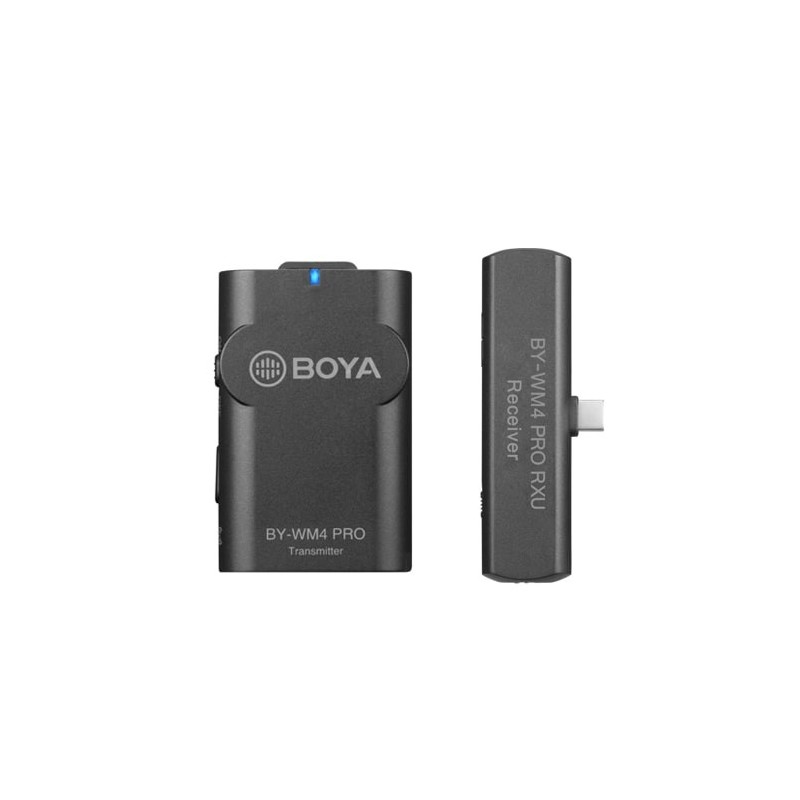

BOYA BY-WM4 PRO-K5 is a digital plug-in 2.4GHz Wireless system, is for easily using for your Android and other Type-C devices.
The system consists of a body-pack transmitter (TX4 Pro) and a miniature receiver with a Type-c connector (BY-WM4 PRO RXU),
one omnidirectional lavalier microphone. However, the ultracompact dual-channel receiver can allow users to work two transmitters at the same time.
With a feature set that includes selectable stereo and mono mode, 3.5mm headphone jack for receiver,
the BY-WM4 PRO RXU is designed to meet the various demands for live streaming, vlogging, podcast and more.
Specifications
RF Modulation: GFSK (Gauss frequency Shift Keying)
Frequency band: 2.4GHz (2405-2478MHz)
Frequency response: 35Hz-14KHz±3dB
Signal/Noise: 84dB or more
Distortion: 0.05% or less (32Ω,1 KHz,65mW output)
RF output level: 3mW
Earphone output level: 32Ω,65mW
Reception sensitivity: -90dB +/- 3dB / 0dB=1V/Pa, 1kHz
Audio input connector: 3.5mm mini jack
Operation range: 60m (197ft) (without obstacle)
Power requirements: BY-WM4 PRO RXU: Supplied by USB Type-C device
Plug: BY-WM4 PRO RXU: USB Type-C Connector
Consumption power: Transmitter: 3V/70mA
Receiver:3V/70mA
Dimensions: Receiver: BY-WM4 PRO RXU: 82×30.7×12mm
Transmitter: 45x70x35mm
Weight: Receiver:BY-WM4 PRO RXD: 12g
Transmitter: 47g
