Specification

Portable Recorder

Number of Tracks 4

Maximum Sampling Rate 96 kHz / 24-Bit

Microphone Interchangeable Cardioid Condenser Stereo Pair, X/Y Configuration

Built-In Speaker Yes, 400 mW Mono

Display Monochrome LCD (Backlit)

Memory Card Support SD (16 MB to 2 GB)

SDHC (4 to 32 GB)

Internal Storage None

Recording

Audio File Formats BWF, MP3, WAV

Sample Rates WAV:

44.1 / 48 / 96 kHz (Stereo)

MP3:

44.1 kHz

Bit Depth 16 / 24-Bit

Bit Rates 48 to 320 kb/s

Signal Processing & FX Compressor, Limiter, Low-Cut Filter, Pitch Control

Timecode Support No

Recording Time WAV 44.1 kHz/16-Bit:

1 Hr 30 Min per GB (Stereo)

MP3 320 kb/s:

7 Hrs per GB (Stereo)

Connectivity

Analog I/O 2 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Line/Mic Input

3.5 mm TRS Female Unbalanced Line/Mic Input

3.5 mm TRS Female Unbalanced Line Output

 3.5 mm TRS Female Unbalanced Headphone Output

Digital I/O None

Phantom Power +12 / 24 / 48 V (Selectable on Individual Inputs)

Plug-In Power Yes, 2.5 V

Host Connection 1 x Mini-USB (2.0)

Performance

Gain/Trim Range X/Y Mic Capsule:

Up to +52 dB

1/8" Inputs:

Up to +52 dB

Mic/Line Inputs:

Up to +55 dB

Max Input Level Mic/Line Inputs:

+22 dBu (Pad On)

Headphone Output Power 20 mW per Channel into 32 Ohms

Impedance  3.5 mm Inputs:

≥2 Kilohms

Mic/Line Inputs:

≥1.8 Kilohms

Line Outputs:

≥10 Kilohms

EIN ≤-120 dBu

Microphone Sensitivity -45 dB/Pa

Microphone Max SPL 140 dB SPL

Power

Power Options Battery, USB Bus Power, AC/DC Power Adapter

Battery Type 2 x AA (Not Included)

Approximate Battery Life WAV 44.1 kHz/16-Bit:

15 Hours (Alkaline, 2 Channels)

WAV 48 kHz/24-Bit:

7.2 Hours (Alkaline, All Channels)

AC/DC Power Adapter 5 VDC at 1 A (Not Included)

In the Box

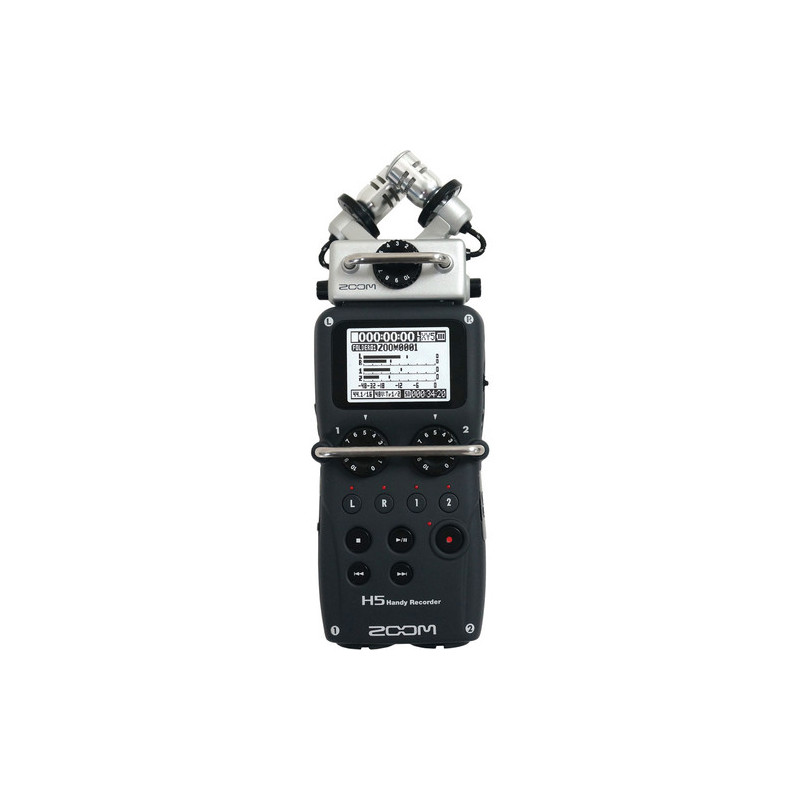

Zoom H5 4-Input / 4-Track Portable Handy Recorder with Interchangeable X/Y Mic Capsule

Zoom XYH-5 - X/Y Microphone Capsule for Zoom H5 and H6 Field Recorders

Protective Case

Foam Windscreen

USB Cable

Set of Download Codes for Cubase LE and WaveLab LE
