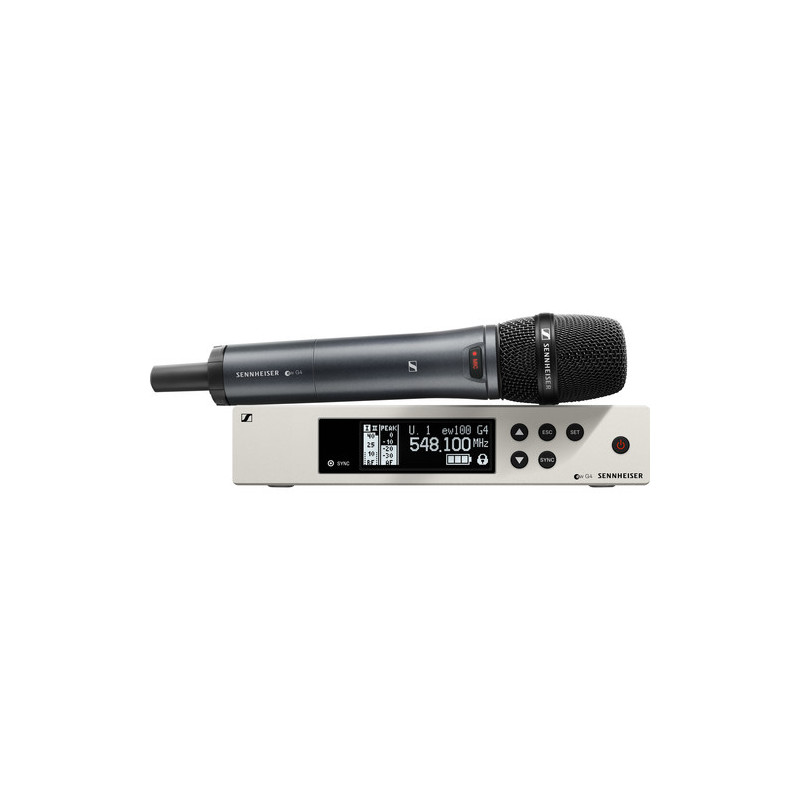

Sennheiser EW 100 G4-845-S Specs

Key Specs

Wireless Technology

Analog UHF

Included Transmitters

1 x Handheld

Diversity

True Diversity

Max Operating Range

330' / 100.6 m (Line of Sight)

Receiver Type

Tabletop

Microphone Type

Handheld Capsule

Polar Pattern

Supercardioid

System

Wireless Technology

Analog UHF

Number of RF Channel Frequencies

1680

Included Transmitters

1 x Handheld

Diversity

True Diversity

RF Frequency Band

A: 516 to 558 MHz

RF Bandwidth

42 MHz

Frequency Step Size

25 kHz

Max Operating Range

330' / 100.6 m (Line of Sight)

Max Transmitters per Band

20

Deviation

±24 kHz (Peak)

Modulation

Wideband FM

Receiver

Receiver Type

Tabletop

Mounting Options

Rackmount (with Included Hardware)

Rackmount Size

1 RU (1/2 Rack)

Antenna

2 x Rod, Detachable (Rear-Mount)

Number of Audio Channels

1

Audio I/O

1 x XLR 3-Pin Male Balanced Output

1 x 1/4" TRS Female Unbalanced Output

Gain Range

48 dB (3 dB Steps)

Audio Output Level

XLR Output:

+18 dBu (Balanced)

1/4" Output:

+12 dBu (Unbalanced)

Network I/O

2 x RJ10

Network Protocols

Manual IP

Squelch

Adjustable, 5 to 25 dBμV

Adjacent Channel Isolation

>65 dB

Power Requirements

AC/DC Power Adapter

AC/DC Power Adapter

12 VDC at 300 mA (Included)

AC Input Power

100 to 240 VAC, 50 / 60 Hz at 0.2 A

Display & Indicators

1 x Backlit LCD (AF Level, Channel, Frequency, Mute, RF Level, Transmitter Battery Status)

Housing

Metal

Operating Temperature

 -10 to 55°C

Dimensions

 212 x 43 x 190 mm

Weight

 980 g

Transmitter

Transmitter Type

Handheld

RF Output Power

30 mW

Audio I/O

No

Muting

Mute Switch

Audio Input Level

3 V RMS

Gain Range

60 dB (3 dB Steps)

Frequency Response

80 Hz to 18 kHz (Mic)

Sync Method

IR

Antenna

1 x Internal (Handheld)

Power Requirements

Battery

Battery Type

2 x AA (Included)

1 x Sennheiser Battery Pack (Not Included, Replaceable)

Approx. Battery Life

8 Hours (Alkaline)

Display & Indicators

1 x Backlit LCD (Audio Level, Battery Status, Channel, Group, Mute, Signal Strength)

Housing

Metal

Operating Temperature

-10 to 55°C

Dimensions

50 x 265 mm

Weight

450 g (with Batteries)

Microphone

Microphone Type

Handheld Capsule

Color

Black

Sound Field

Mono

Capsule

Dynamic

Polar Pattern

Supercardioid

Maximum SPL

154 dB SPL Peak

Sensitivity

1.6 mV/Pa
