Specifications:

Audio Specifications:

Audio Format: 24-bit / 48 kHz, delivering high-resolution audio quality.

Frequency Response: 20 Hz – 20 kHz, providing a full spectrum of sound capture from bass to treble.

Signal-to-Noise Ratio: ≥ 84 dB, ensuring a clean sound with minimal background noise.

Microphone Type: Omnidirectional lavalier microphone included, capturing sound from all directions.

Max SPL (Sound Pressure Level): 120 dB, allowing it to handle loud sounds without distortion.

Transmitter (TX) Specifications:

RF Output Power: 10 mW, enabling a strong signal transmission.

Input Level: -60 dBV (mic input), suitable for capturing even soft sounds clearly.

Battery Capacity: 500mAh lithium battery, supporting up to 10 hours of use per charge.

Dimensions: Compact and lightweight for easy wear; dimensions are approximately 63 × 43 × 16 mm.

Weight: Approximately 32g per transmitter.

Receiver (RX) Specifications:

Output Level: Adjustable output levels for precise control over audio feed to your device.

Audio Output: 3.5mm TRS and TRRS outputs for universal compatibility with cameras, smartphones, and more.

Headphone Monitoring: 3.5mm output for real-time audio monitoring on compatible receivers.

Battery Capacity: 500mAh lithium battery, with similar battery life of up to 10 hours per charge.

Dimensions: 63 × 43 × 16 mm, matching the transmitter in portability.

Weight: Approximately 32g per receiver.

Wireless Specifications:

Transmission Range: Up to 100 meters (328 feet) in line-of-sight conditions; indoor range may vary depending on obstructions.

Latency: < 10 ms, ensuring low-latency performance suitable for real-time audio/video synchronization.

Modulation: 2.4GHz frequency hopping technology, providing stable connection with minimal interference.

Operating Temperature: -10°C to 50°C, designed to perform in a wide range of environmental conditions.

Charging and Power:

Charging Case: Optional case available for simultaneous charging and storage of transmitters and receivers.

Charging Time: Approximately 2 hours to fully charge the transmitters and receiver from empty.

Power Indicator: OLED displays show battery status, signal strength, and other important parameters.

Accessories Included:

Lavalier Microphones: Two high-quality omnidirectional lav mics with windshields.

TRS & TRRS Cables: 3.5mm TRS cable for cameras, TRRS for smartphones.

USB-C Charging Cable: For direct charging of each unit.

Clip and Mount Options: Secure clips for attaching the transmitter to clothing, and shoe mounts for receivers to attach to camera rigs.

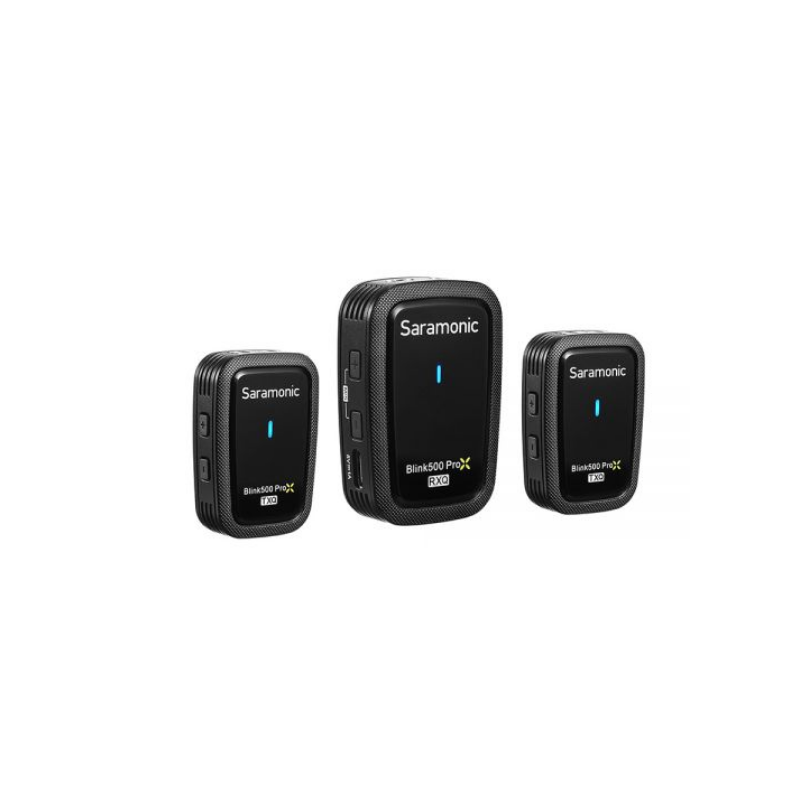

These detailed specifications show how the Blink500 ProX Q20 is designed to deliver professional-grade audio, durability, and ease of use in various recording environments, making it highly suitable for content creators on the go.
