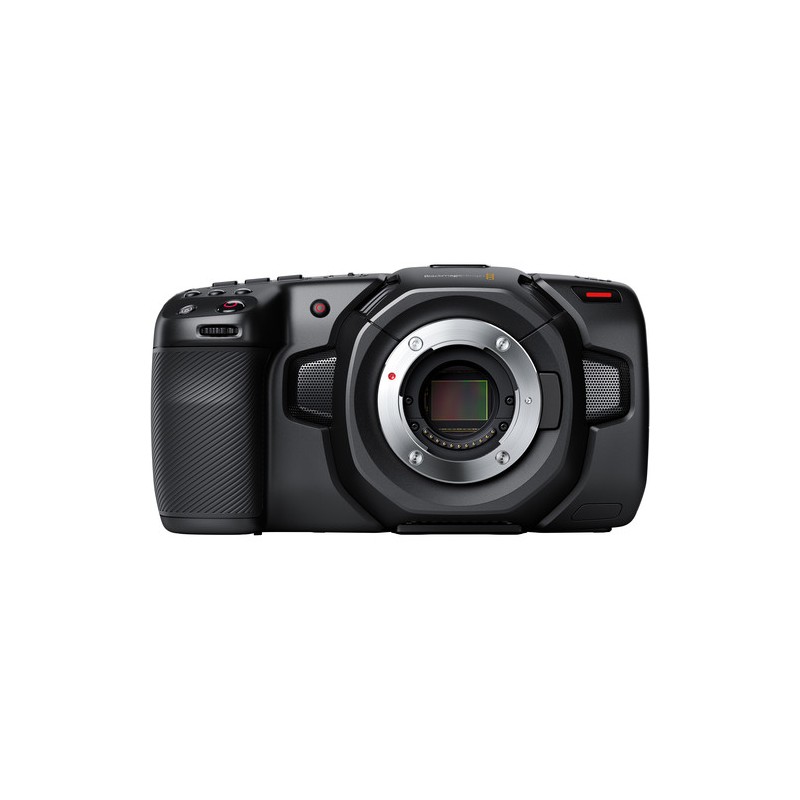

Blackmagic Design Pocket Cinema Camera 4K Specs
Lens Mount Micro Four Thirds
Image Sensor 18.96 x 10 mm (Four Thirds) CMOS
Image Stabilization No
ISO Sensitivity Range 100 to 25,600
Internal Recording Modes
Blackmagic RAW
4096 x 2160 up to 59.94 fps [28 to 136 MB/s]
3840 x 2160 up to 59.94 fps [26 to 127 MB/s]
2880 x 2160 up to 80 fps [20 to 96 MB/s]
4096 x 1720 up to 75 fps [22 to 108 MB/s]
2688 x 1512 up to 120 fps [13 to 63 MB/s]
1920 x 1080p up to 120 fps [7 to 33 MB/s]
ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT
4096 x 2160 up to 59.94 fps [24.25 to 117.88 MB/s]
3840 x 2160 up to 59.94 fps [22.4 to 110 MB/s]
1920 x 1080p up to 120 fps [5.6 to 27.5 MB/s]
External Recording Modes
4:2:2 10-Bit via HDMI
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
Raw 12-Bit via USB
4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
Media/Memory Card Slot
Slot 1: CFast
Slot 2: SD/SDHC/SDXC (UHS-II)
Video I/O 1x HDMI (Unspecified Signal) Output
Mobile App Compatible
Yes: iOS Only
App Name: Blackmagic Camera Control
Functionality: Adjust Settings, Remote Control
Battery Type Canon LP-E6
Imaging
Lens Mount Micro Four Thirds
Lens Communication Yes
Image Sensor 18.96 x 10 mm (Four Thirds) CMOS
Image Stabilization No
Built-In ND Filter No
Internal Filter Holder No
Capture Type Stills & Video
Exposure Control
Shutter Type
Electronic Rolling Shutter
ISO Sensitivity Range 100 to 25,600
Advertised Dynamic Range  13 Stops
Video Capture
Internal Recording Modes
Blackmagic RAW
4096 x 2160 up to 59.94 fps [28 to 136 MB/s]
3840 x 2160 up to 59.94 fps [26 to 127 MB/s]
2880 x 2160 up to 80 fps [20 to 96 MB/s]
4096 x 1720 up to 75 fps [22 to 108 MB/s]
2688 x 1512 up to 120 fps [13 to 63 MB/s]
1920 x 1080p up to 120 fps [7 to 33 MB/s]
ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT
4096 x 2160 up to 59.94 fps [24.25 to 117.88 MB/s]
3840 x 2160 up to 59.94 fps [22.4 to 110 MB/s]
1920 x 1080p up to 120 fps [5.6 to 27.5 MB/s]
External Recording Modes
4:2:2 10-Bit via HDMI
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
Raw 12-Bit via USB
4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
Fast-/Slow-Motion Support  Yes
Built-In Microphone Stereo
IP Streaming Yes
Interface
Media/Memory Card Slot
Slot 1: CFast
Slot 2: SD/SDHC/SDXC (UHS-II)
Video I/O 1x HDMI (Unspecified Signal) Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
1x Mini XLR Mic/Line (+48 V Phantom Power) Input
Power I/O
1x Weipu SF610/S2 Input
Other I/O
1x USB-C Video Output
1x 1/8" / 3.5 mm (Timecode) Input (Shared with Mic/Line Input)
Wireless
Bluetooth Control
Mobile App Compatible
Yes: iOS Only
App Name: Blackmagic Camera Control
Functionality: Adjust Settings, Remote Control
Global Positioning (GPS, GLONASS, etc.)
No
Monitor
Display Type
Primary Monitor: Fixed 5" Touchscreen LCD
Resolution Primary Monitor: 1920 x 1080
Viewfinder
Type Optional, Not Included
Focus
Focus Mode Automatic, Manual Focus
Power Battery Type
Canon LP-E6
Environmental
Operating Conditions 0 to 40°C up to 90% Humidity
Storage Conditions  -20 to 45°C
General
Shoe Mount
No
Tripod Mounting Thread
1/4"-20 Female
Accessory Mounting Thread
1x 1/4"-20
Material of Construction
Carbon Fiber
Dimensions (W x H x D)  177.8 x 96.5 x 86.4 mm
Weight 680.38 g (Body Only)
Items Included
Blackmagic Design Pocket Cinema Camera 4K
DaVinci Resolve Studio Activation Key
Canon LP-E6 Type Battery
30W Power Supply with International Adapters
Dust Cap
