Specifications

Display
Panel Type IPS-Type LCD
Display Size 17.8 cm
Resolution 1920 x 1200
Aspect Ratio 16:10
Viewing Angle Horizontal: 160° (80/80)
Vertical: 160° (80/80)
Touchscreen Yes
Maximum Brightness 2200 cd/m2
Contrast Ratio 1200:1
HDR Compatibility Hybrid Log Gamma
Pixels Per Inch (ppi) 323 ppi
Image Controls Anamorphic De-Squeeze, Blue Only, Check Field, Customizable Aspect Ratios, False Color, Focus Peaking, Green Only, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, RGB Parade, Red Only, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
Video I/O 1 x HDMI Input
1 x HDMI Output
Embedded Audio HDMI
Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x Barrel 3.5 mm (8 VDC) Output
Media/Memory Card Slot Single Slot: SD/SDHC
Wi-Fi None

Format Support
Video Format HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p: 25
480p: 29.97
576i: 50
480i: 59.94
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
576i: 50
480i: 59.94

Power
DC Input Power 7 to 24 VDC at 2 A
Battery Type 1 x L-Series
Power Consumption 20 W

In the Box

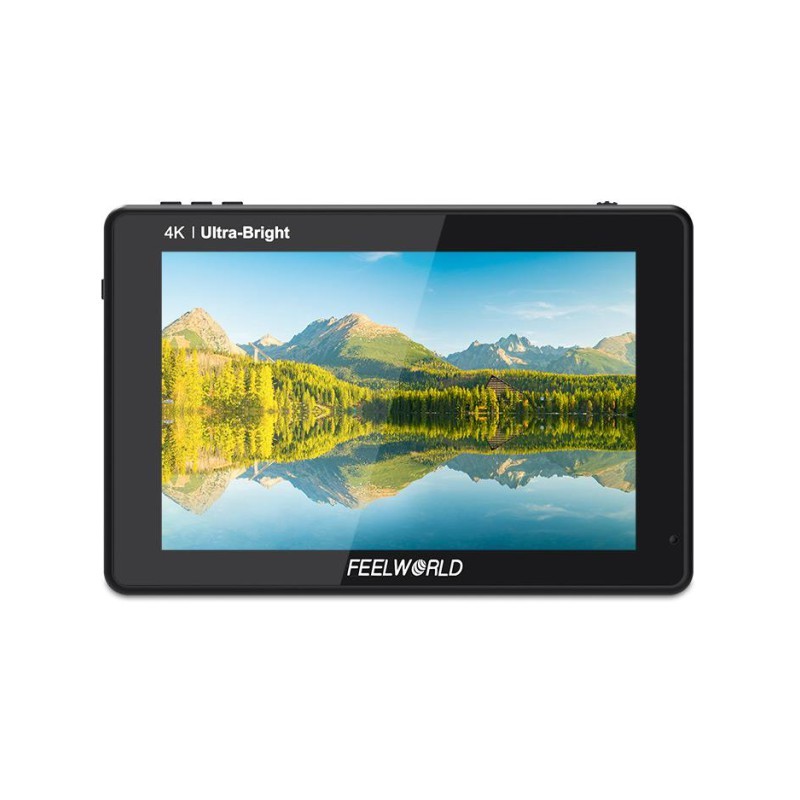

FeelWorld LUT7 PRO 7" Ultrabright HDMI Field Monitor with F970 Accessory Mounting Plate
Micro-HDMI to HDMI Cable
Tilt Arm Mount
Allen Wrench
