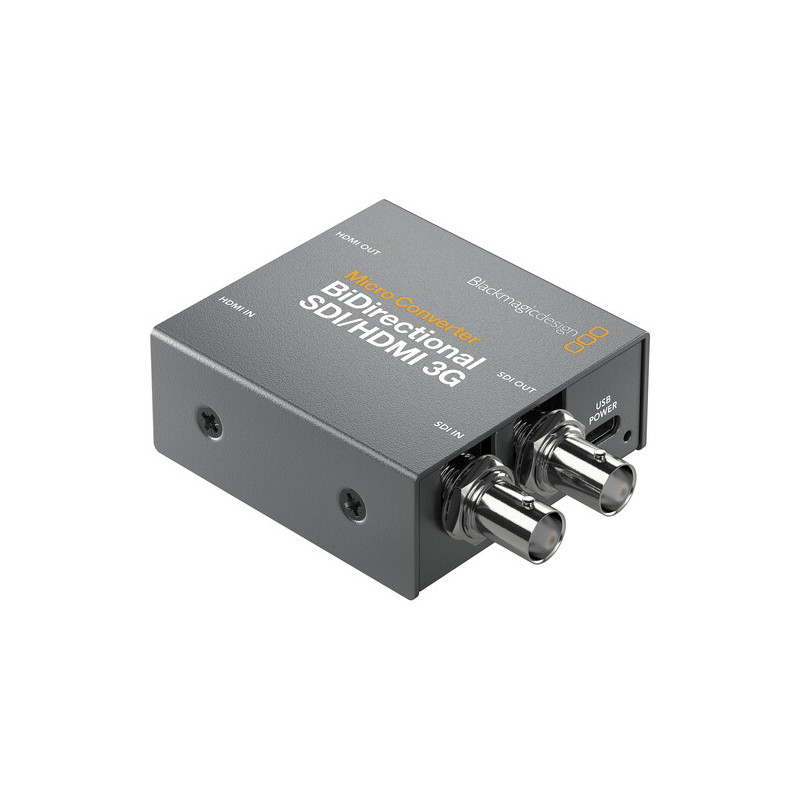

Blackmagic Design Micro Converter Specs

Video Inputs:
1 x BNC (3G-SDI)
1 x HDMI (2.0)
Audio Inputs: No
Video Outputs:
1 x BNC (3G-SDI)
1 x HDMI (2.0)
Audio Outputs: No
Other I/O: 1 x USB-C Input
Expansion Slots: No

Input Video Format
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF at 25/29.97/30 fps
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF at 25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
480i / 525 lines at 59.94 fps
576i / 625 lines at 50 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
480i / 525 lines at 29.97 fps
576i / 625 lines at 25 fps

Output Video Format:
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF at 25/29.97/30 fps
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF at 25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
480i / 525 lines at 29.97 fps
576i / 625 lines at 25 fps
Embedded Audio: HDMI/SDI

Standards
Video Standard Compliance
SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDR Compatibility: No

Hardware
Tally Light: Yes
Wireless: No
OS Compatibility
macOS 10.15
macOS 11.1 or Later
Windows 10 (64-Bit Only)
*As of October, 2023: Check with manufacturer for the most up-to-date compatibility

Power
Power I/O
1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption: 2.5 W

Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 60°C
Operating Humidity: 0 to 90%

General
Dimensions
80.77 x 58.93 x 24.89 mm
Weight: 174 g
