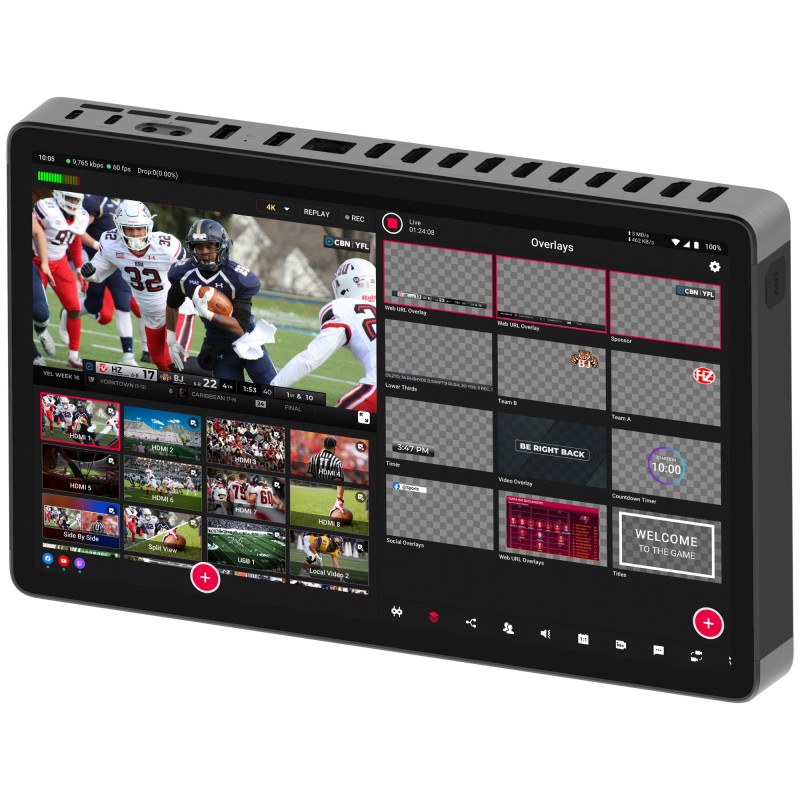

YOLOBOX EXTREME SPECS
Input Power 9V / 12V / 15V⎓3A
Power Consumption 45W
Power Supply USB Type-C USB Rated Output USB-A:5V/1A
Battery Capacity 10000mAh
Dimensions 264*167*29mm
Power Consumption ＜45W
Monitor Screen Size 11.2inch 2K OLED; Resolution: 2560x153;
Brightness: 450nits ( ≈ LCD 800-1000nits);
Frequency: Fre =120Hz; Contrast ratio (1500:1);
Viewing Angle (full viewing Angle); NTSC 108%
Local Video Inputs HDMI USB-A
Video Over Ethernet RTMP/RTMPS/SRT/NDI/RTSP
Video Input Connectors HDMI, USB-A, RJ-45, USB Type-C
Video Input Aspect Ratios 16:9, 4:3, 1:1
Video Input Deinterlacing No
Live Broadcast Video Input Resolution 480p/720p/1080p(up to 60fps)/4Kp60
Video Encoded Format H.264 H.265
Video Processing Bitrate Control CQ, VBR, CBR
Hardware-accelerated Video Encoding Optional
Video Output Signal Types FLV-RTMP, HDMI, UVC
Video Output Connectors HDMI OUT, USB-C
Video Output Streaming Protocols RTMP, RTMPS, MJPEG, SRT
Live Broadcast Video Output Resolution 480p/720p/1080p(Up to 60fps)/4Kp60
Analog Audio Input Connectors Line In; Mic In; 3.5mm
Digital Audio Outputs USB; HDMI; RTMP (From internet);
Local video (From SD card) Digital Audio Input Connectors
USB-A, HDMI, USB-C Audio Input Mute
Yes
Audio Input Format 32KHZ/44.1KHZ/48KHZ :16bit
Audio Encoded Format (AAC)44.1K/48KHZ 2Ch 16bit
Analog Audio Output 3.5mm Headphone Jack
Digital Audio Outputs HDMI Audio (Embedded); USB Audio (Embedded)
Record Formats MP4
Wi-Fi 2.4G/ 5G (Support WiFi6/WiFi7)
USB Communication Standard USB 2.0 and USB 3.0
Ethernet Data Rate 10/100/1000m, Half/full Duplex With Autodetect
SIM Card Size Nano-SIM Card
4G Network
4G Network Countries & Frequency Band For
Users: [Variant for North Americao (US/Canada/Mexico)]
B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
Notes: Mexico B4 For Non-US/Canada/Mexico
Users: (EU：Variant for EMEA/India/Korea/Taiwan/South
Asia/Latin/America/Australia/New Zealand)
Users:B1//B3/B7/(B8) Notes：Thailand B1/B3
SD Card Format FAT32(Under 128G); NTFS; EX-FAT
Operating Temperature 0℃-40℃
Operating Humidity 15%-85%; No Condensation
YoloBox Extreme TH WCDMA Network
B1/B8
4G Network
B1/B3/B7/B8
USB Communication Standard USB 2.0 and USB 3.0
Ethernet Data Rate 10/100/1000M, half/full duplex with autodetect
SIM Card Size Nano-SIM Card
SD Card Format FAT32(Under 128G), NTFS, EX-FAT
Operating Temperature 0℃-40℃
Operating Humidity 15%-85%, No Condensation
