YoloLiv YoloBox Pro Specifications

IP Video
H.264: 960 x 540 to 1920 x 1080 Encoding
IP Audio AAC-LC: Encoding
Simultaneous Streams 3 Streams
Video I/O 3x HDMI Input 1x HDMI Output
Embedded Audio HDMI/Wireless: 2-Channel
Recording Media 1x SD (Unspecified Type)
Recording Modes 1920 x 1080p up to 60 fps
Display LCD
IP Encoding/Decoding
IP Video H.264:960 x 540 to 1920 x 1080 Encoding
IP Audio AAC-LC: Encoding
Transport Protocols RTMP
Simultaneous Streams 3 Streams
Compatible Services Facebook Live, Twitch, YouTube Live
Wireless
Wi-Fi Yes
Bluetooth No
Cellular Support
4G LTE via Nano-SIM
4G Bands: 1 / 2 / 3 / 4 / 5 / 7 / 8 / 12 / 13 / 14 / 17 / 20 / 25 / 26 / 28 / 38 / 39 / 40 / 41 / 66 / 71
SIM Card Slots 1x Nano SIM
Interfaces
Video I/O 3x HDMI Input 1x HDMI Output
Audio I/O
1x 3.5 mm TRRS Headphone/Microphone Stereo Analog Input
1x 3.5 mm TRRS Headphone/Microphone Mono Analog Input
1x 3.5 mm TRRS Headphone/Microphone Stereo Analog Output
Other I/O
1x RJ45 Fast Ethernet Input/Output
1x USB-A 3.0 / 3.1/3.2 Gen 1 Input
1x USB-C 3.0 / 3.1/3.2 Gen 1 Input/Output
Embedded Audio
HDMI/Wireless: 2-Channel
Internal Recording
Recording Media 1x SD (Unspecified Type)
Recording Modes 1920 x 1080p up to 60 fps
Power
Built-In Battery 10,000 mAh
Power I/O 1x USB-C (5 to 12 VDC at 1.5 A) Input
General
Operating Conditions -10 to 40°C
Storage Conditions  5 to 40°C
Display LCD
Dimensions 218 x 129 x 27 mm
Weight 750 g
Packaging Info
Package Weight 1.60kg
Box Dimensions (LxWxH) 10 x 16 x 7cm
In the Box

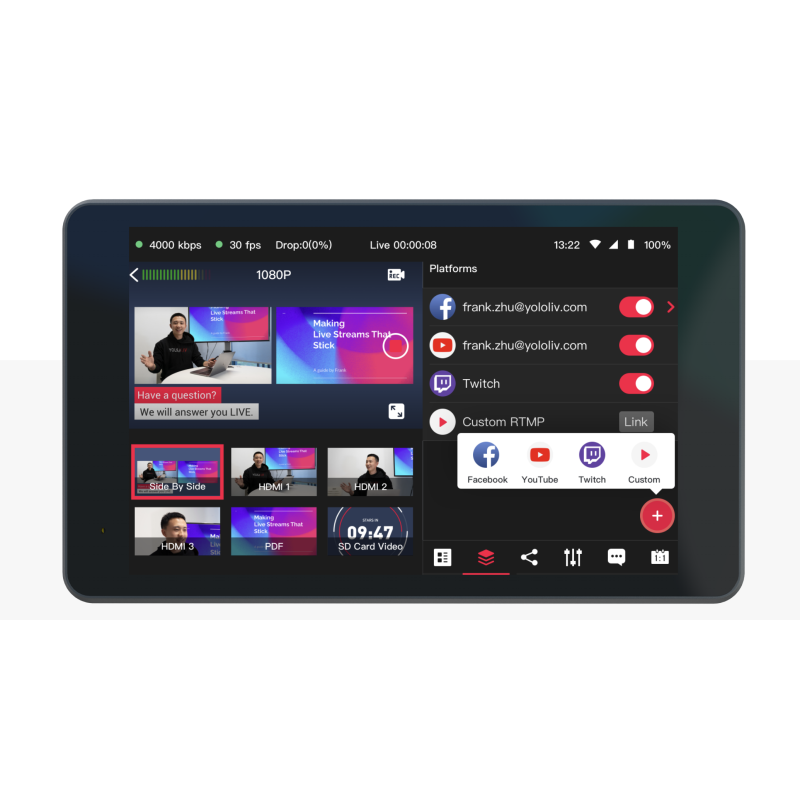

YoloLiv YoloBox Pro All-in-One Multi-Camera Switching and Live Streaming System
2 x USB Type-C Cable
Shoe Mount
SIM Card Eject Pin
