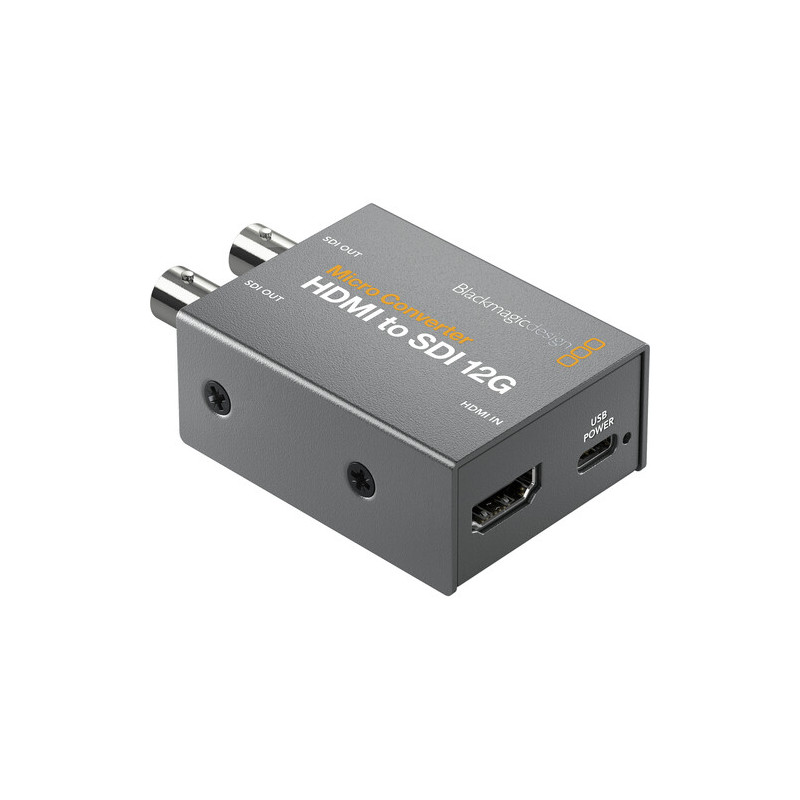

Blackmagic Design Micro Converter Specs

Video Inputs
1 x HDMI (HDMI 2.0) Female
Audio Inputs: None
Video Outputs
2 x BNC (12G-SDI) Female
Audio Outputs: None
Other I/O
1 x USB-C Control, Service Input
Expansion Slots: None
Input Video Format
HDMI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Output Video Format
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps

Embedded Audio
HDMI/SDI
Standards
Video Standard Compliance
SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084
HDCP Support
, Version 2.2
HDR Compatibility
Not Specified by Manufacturer

Hardware
OS Compatibility
macOS 10.15.15 or Later
macOS 11.1 or Later
Windows 10
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility

Power
Power I/O
1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption
Device: 4 W

Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90% (Non-Condensing)

General
Dimensions
3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
Weight: 5.29 oz / 150 g

Packaging Info
Package Weight: 0.36 lb
Box Dimensions (LxWxH)
3.1 x 1.8 x 1.1"
