Encoded Format

Video Encoded Format：H.264

Audio Encoded Format：AAC (48k)

Video Recorded format：MP4

Audio Input Format：32kHz, 44.1kHz, 48kHz, 16-bit

Video Input Format：1080i/ 720p/ 1080p

Live Broadcast Resolution：480P/720P/1080P

Video Storage

Storage Card Type：SD Card

Storage Card Capacity：Expanded to 128G in FAT32 Format

Network Connection

WiFi：2.4G/5G

4G Network Countries & Frequency Band For

SIM Card Size：Standard SIM Card

Power

Power Interface：Type C, Quick Charge 3.0

Battery Capacity：3.7V/5200mAh

Transmission

Network Protocol：RTMP(S)

Working Environment

Operating Temperature：-10℃-40℃

Storage Temperature：5℃-40℃



Dimensions

Height: 19.5mm

Width: 107mm

Length: 185mm

Weight: 480g

In the Box

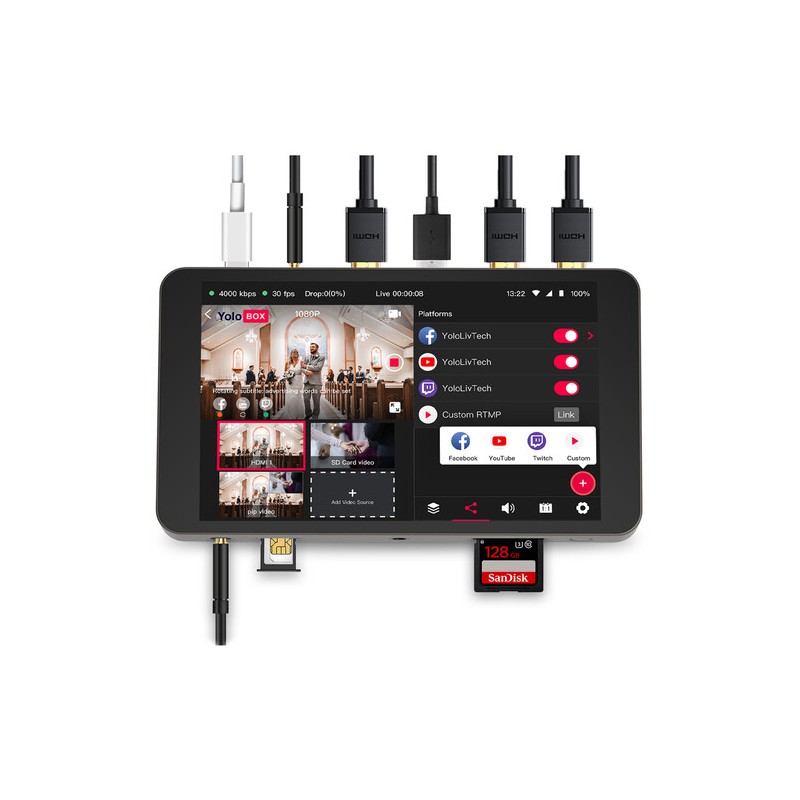

YoloLiv YoloBox Portable All-in-One Multi-Camera Live Streaming Encoder, Switcher, Monitor, and Recorder

USB-C Charger Cable

Hot Shoe Mount

Storage Bag

Sim Card Eject Pin
