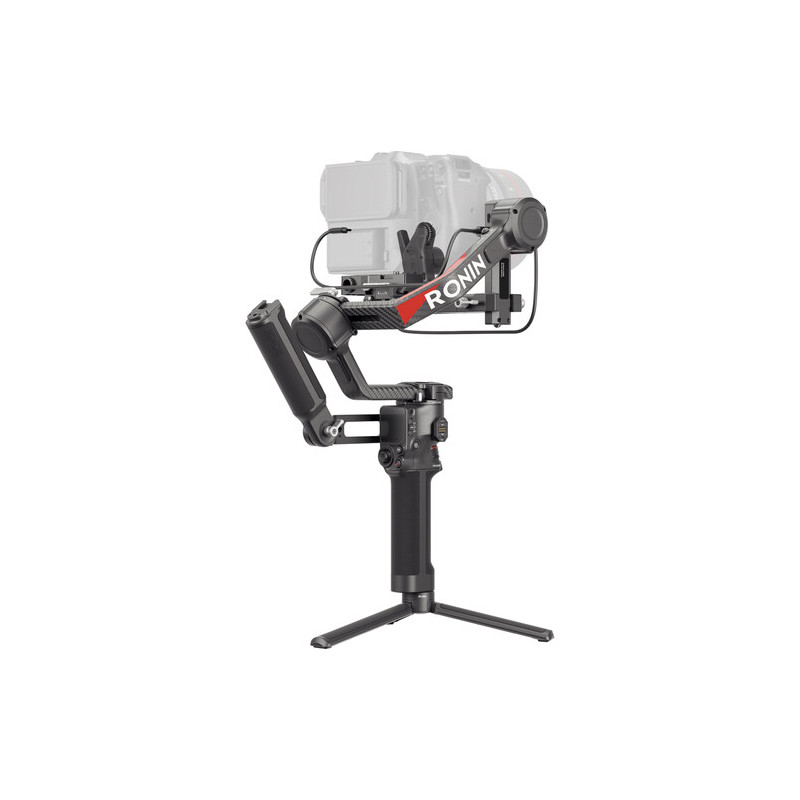

DJI RS 4 Pro Specs

Key Specs
Gimbal Design
Single Handgrip (Slanted)
Load Capacity
9.9 lb / 4.5 kg
Number of Axes
3: Pitch (Tilt), Roll, Yaw (Pan)
Wireless Frequency
2.4 GHz
Wireless Protocol
Bluetooth 5.0
Mobile App Compatible
Yes: Android & iOS
App Name: Ronin App
Mounting
20 Female
2 x NATO Rail
Weight; 1.24 kg
Gimbal
Load Capacity: 4.5 kg
Number of Axes
3: Pitch (Tilt), Roll, Yaw (Pan)
Rotation Range
Mechanical Range
Yaw (Pan): 360° Unlimited
Pitch (Tilt): 326° (-112 to 214°)
Roll: 335° (-95 to 240°)
Follow Speed
Pan/Tilt/Roll: 360°/s

Compatibility
Camera Control
On Compatible Models (See Full Compatibility List)

Connectivity
Inputs/Outputs
3x USB-C (Control / Video)
1x USB-C (Power)
Wireless Frequency
2.4 GHz
Wireless Protocol
Bluetooth 5.0
Mobile App Compatible
Yes: Android & iOS
App Name: Ronin App

Battery
Battery Type
1x Built-In
Battery Capacity
1950 mAh / 30 Wh
Battery Runtime: 13 Hours
Battery Charging Time
1.5 Hours
Battery Chemistry
Lithium-Ion Polymer (LiPo)
Voltage: 15.4 VDC
Power
Operating Voltage
15.4 VDC

Environmental
Operating Temperature
-20 to 45°C

General
Display Type
Fixed Touchscreen OLED
Materials
Carbon Fiber
Mounting
1/20 Female
2 x NATO Rail
Dimensions
283 x 271 x 75 mm (Folded)
416 x 223 x 202 mm
Weight
1.24 kg

Packaging Info
Package Weight: 8.92 lb
Box Dimensions (LxWxH): 13.6

In the Box
DJI RS 4 Pro Gimbal Stabilizer Combo
BG30 Battery Grip
Quick Release Plate (Arca-Type/Manfrotto)
Extended Grip/Tripod
DJI Briefcase Handle for RS Series
Lens Support
USB-C Multicamera Control Cable (11.8")
USB-C Charging Cable (15.7")
DJI Ronin RavenEye Image Transmission System for DJI Stabilizers
DJI Focus Pro Motor
Screw Kit
Lower Extended Quick Release Plate
Smartphone Holder
Carrying Case
