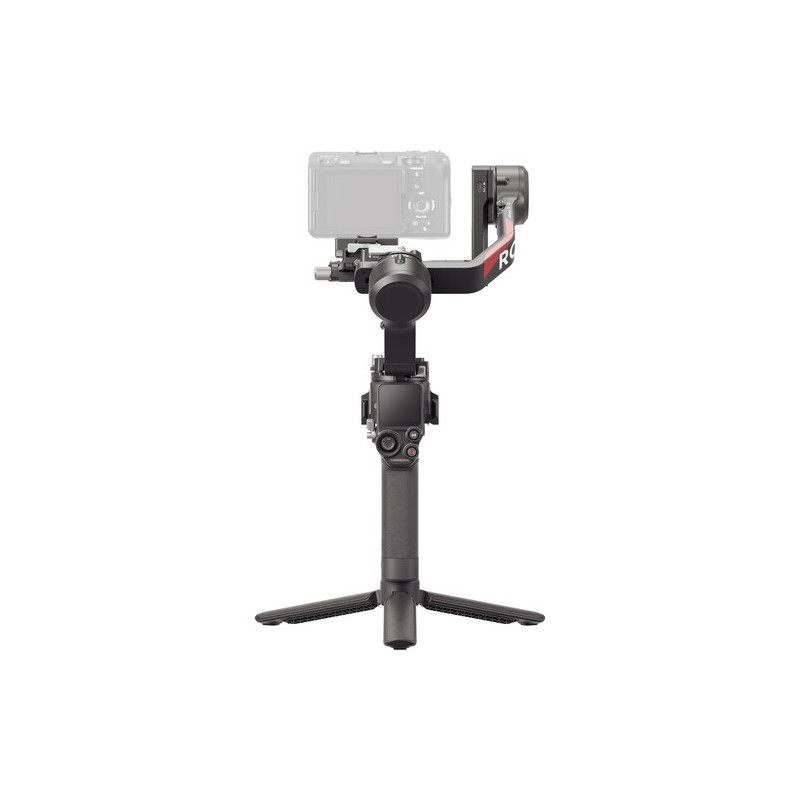

DJI RS 4 Specs

Gimbal Design
Single Handgrip (Slanted)
Load Capacity: 6.6 lb / 3 kg
Number of Axes: 3: Pitch (Tilt), Roll, Yaw (Pan)
Wireless Frequency: 2.4 GHz
Wireless Protocol: Bluetooth 5.0
Mobile App Compatible: Yes: Android & iOS
App Name: Ronin App

Mounting
1 x 1/4"-20 Female
2 x NATO Rail
Weight: 2.36 lb / 1.07 kg

Gimbal
Load Capacity: 6.6 lb / 3 kg
Number of Axes: 3: Pitch (Tilt), Roll, Yaw (Pan)
Rotation Range
Mechanical Range
Yaw (Pan): 360°
Pitch (Tilt): -112 to 214°
Roll: -95 to 240°
Follow Speed
Pan/Tilt/Roll: 360°/s

Compatibility
Camera Control
On Compatible Models (See Full Compatibility List)

Connectivity
Inputs/Outputs
3x USB-C (Control / Video)
1x USB-C (Power)
Wireless Frequency: 2.4 GHz
Wireless Protocol
Bluetooth 5.0
Mobile App Compatible: Yes: Android & iOS
App Name: Ronin App

Battery
Battery Type: 1x Built-In
Battery Capacity: 3000 mAh / 21 Wh
Battery Runtime: 12 Hours
Battery Charging Time: 2.5 Hours
Battery Chemistry: Lithium-Ion Polymer (LiPo)
Voltage: 7.2 VDC
Power
Operating Voltage: 7.2 VDC

Environmental
Operating Temperature: -4 to 113°F / -20 to 45°C

General
Display Type
Fixed Touchscreen OLED
Materials
Aluminum Alloy
Mounting
1 x 1/4"-20 Female
2 x NATO Rail
Dimensions
10 x 9.6 x 3" / 255 x 245 x 75 mm (Folded)
14.6 x 7.5 x 7.4" / 370 x 191 x 189 mm
Weight: 2.36 lb / 1.07 kg

Packaging Info
Package Weight: 4.51 lb
Box Dimensions (LxWxH): 12.4 x 9 x 2.9"
