Specifications
Gimbal Design Single Handgrip
Load Capacity
5.3 to 10.6 oz / 150 to 300 g
Number of Axes
Three: Pitch (Tilt) / Roll / Yaw (Pan)
Smartphone Dimensions
Width: 2 to 3.5" / 50 to 90 mm
Thickness: 0.4" / 10 mm
Smartphone Mounting Method
Magnetic Clamp
Display Type No
Dimensions
12.2 x 6.6 x 2" / 311 x 168 x 52 mm
Weight
22.0 oz / 625 g (with Battery)

Gimbal
Load Capacity
5.3 to 10.6 oz / 150 to 300 g
Number of Axes
Three: Pitch (Tilt) / Roll / Yaw (Pan)
Rotation Range
Mechanical Range
Yaw (Pan): 360° (-180 to 180°)
Roll: 349° (-90 to 259°)
Pitch (Tilt): 349° (-140 to 209°)

Compatibility
Smartphone Dimensions
Width: 2 to 3.5" / 50 to 90 mm
Thickness: 0.4" / 10 mm
Smartphone Mounting Method
Magnetic Clamp

Connectivity
Inputs/Outputs
1x USB-C Input
Wireless
Bluetooth 5.1
*Built-In
Mobile App Compatible
Yes: Android & iOS

Battery
Battery Type
Built-In (2600 mAh)
Battery Runtime
2.3 to 26 Hours
Battery Charging Time
2 Hours

Power
Operating Voltage
6.5 to 8.4 VDC
Operating Current
70 to 3000 mA

General
Display Type No
Operating Conditions
14 to 113°F / -10 to 45°C
Materials Plastic
Accessory Mounting
1 x Bottom 1/4"-20 Female
Dimensions
12.2 x 6.6 x 2" / 311 x 168 x 52 mm
Weight
22.0 oz / 625 g (with Battery)

Packaging Info
Package Weight 2.195 lb
Box Dimensions (LxWxH) 13.8 x 8 x 3"

In The Box

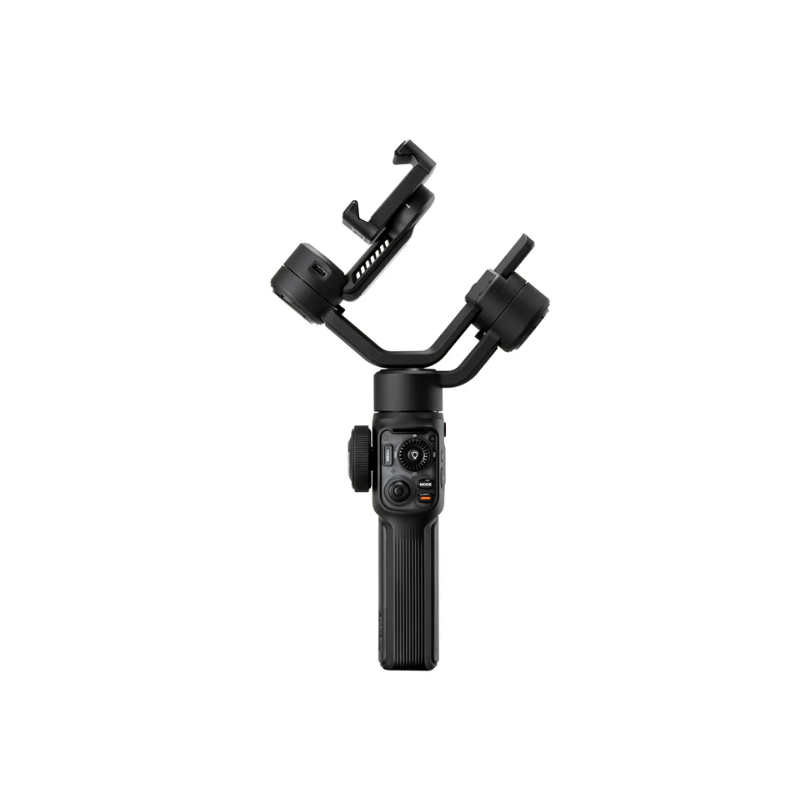

Zhiyun Smooth 5S AI 3-Axis Smartphone Gimbal
Mini Tripod
USB-C Charging Cable
Limited 1-Year Manufacturer Warranty
