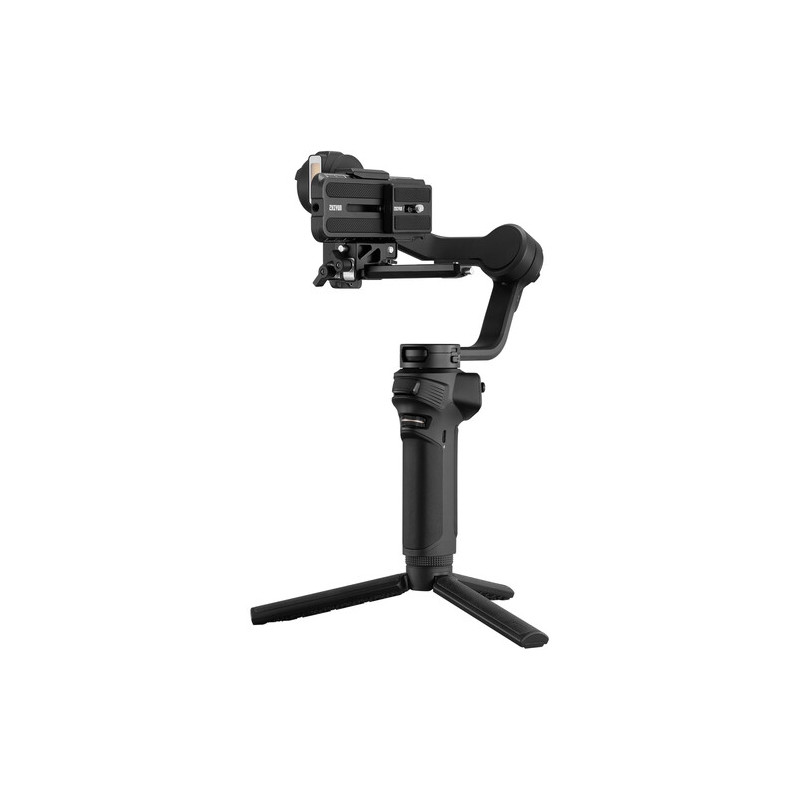

Zhiyun WEEBILL-3S Specs

Key Specs

Grip Design

Single Handgrip (Slanted)

Number of Axes

3-Axis (Pitch (Tilt), Roll, Yaw (Pan))

Wireless Frequency

2.4 GHz

Wireless Protocol

Bluetooth 5.0

Mobile App Compatible

Yes: Android & iOS

App Name: ZY Play

Functionality: Adjust Settings, Remote Control

*As of January, 2023: Check with manufacturer for the most up-to-date compatibility

Mounting

1 x 1/4"-20 Female

1 x 1/4"-20 Male

Weight

2.4 lb / 1.1 kg

Gimbal

Number of Axes

3-Axis (Pitch (Tilt), Roll, Yaw (Pan))

Rotation Range

Controllable Range

Yaw (Pan): 360°

Roll: 65° (-30 to 35°)

Pitch (Tilt): 250° (-90 to 160°)

Mechanical Range

Yaw (Pan): 360° Unlimited

Roll: 340° (-280 to 60°)

Pitch (Tilt): 310° (-130 to 180°)

Stabilization Accuracy

±0.01 to 0.04° (Motionless)

±0.05 to 0.3° (Motion)

Compatibility

Camera Control

On Compatible Models (See Full Compatibility List)

Camera Mounting Screw

1 x 1/4"-20 Male

Connectivity

Inputs/Outputs

1 x USB-C (1.6 A 9 VDC Power) Input

1 x USB-C (1 A 5 VDC Power) Output

Wireless Frequency

2.4 GHz

Wireless Protocol

Bluetooth 5.0

Mobile App Compatible

Yes: Android & iOS

App Name: ZY Play

Functionality: Adjust Settings, Remote Control

*As of January, 2023: Check with manufacturer for the most up-to-date compatibility

Battery

Battery Type

2 x 18650

Battery Capacity

2600 mAh

Battery Runtime

11.5 Hours

Battery Charging Time

2 Hours

Battery Chemistry

Lithium-Ion

Power

Operating Voltage

6.5 to 8.4 VDC

Operating Current

150 to 5300 mA

General

Display Type

Fixed Touchscreen OLED

Mounting

1 x 1/4"-20 Female

1 x 1/4"-20 Male

Dimensions

12 x 8.3 x 2.9" / 305 x 210 x 72.5 mm (Folded)

12.1 x 7.1 x 6.36" / 306.4 x 181.4 x 161.63 mm (without Tripod)

Weight

2.4 lb / 1.1 kg

Packaging Info

Package Weight

4.195 lb

Box Dimensions (LxWxH)

14.2 x 10.8 x 4.7"
