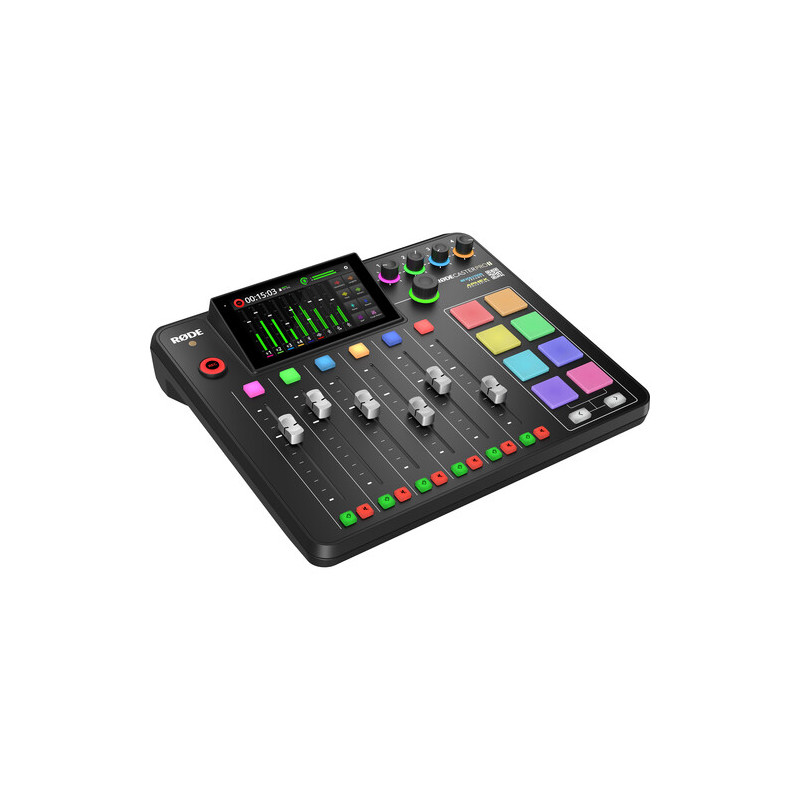

RODE RODECaster Pro 2 Specs
Key Specs
Channels of I/O
Analog:
4 Inputs / 4 Outputs
Built-In DSP
Yes
Maximum Sampling Rate
48 kHz / 24-Bit
Number of Microphone Inputs
4 Preamps
Input Level Adjustment
6 x Fader
Number of Headphone Mixes
4 x Assignable with Mix-Minus
Analog Audio I/O
4 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
2 x 1/4" TRS Balanced Line Output
4 x 1/4" TRS Unbalanced Headphone Output
Host Connection
2 x USB-C
OS Compatibility
macOS 10.15 or Later
Windows 10.1803 or Later
Windows 11
iPadOS
*As of July, 2022: Check with manufacturer for the most up-to-date compatibility
Power Requirements
AC/DC Power Adapter (Included) or USB Bus Power
Channels of I/O
Analog:
4 Inputs / 4 Outputs
Built-In DSP
Yes
Maximum Sampling Rate
48 kHz / 24-Bit
Number of Microphone Inputs
4 Preamps
Built-In Microphone
No
Input Level Adjustment
6 x Fader
Number of Headphone Mixes
4 x Assignable with Mix-Minus
Signal Processing
Pad
No
Gain/Trim Range
0 to 76 dB
Solo/Mute
Solo-in-Place/AFL, Mute, PFL per Input Channel
Connectivity
Analog Audio I/O
4 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
2 x 1/4" TRS Balanced Line Output
4 x 1/4" TRS Unbalanced Headphone Output
Phantom Power
48 V, Selectable On/Off
Digital Audio I/O
No
Host Connection
2 x USB-C
Host Connection Protocol
USB 3.0 / 3.1/3.2 Gen 1
USB (Non-Host)
No
Sync I/O
No
MIDI I/O
No
Wireless
Wi-Fi / Bluetooth
Performance
Frequency Response
Mic Inputs:
20 Hz to 20 kHz
Monitor Outputs:
20 Hz to 20 kHz
Maximum Output Level
Line Outputs:
+4 dBu
Headphone Output Power
250 mW
Impedance
Mic Inputs:
4 Kilohms
Hi-Z Inputs:
1 Megohm
EIN
-131.5 dBV A-Weighted
Digital Audio
Sample Rates
48 kHz
Bit Depths
24-Bit
Audio Storage & Playback
Memory Card Slot
1 x microSDXC
Compatibility
OS Compatibility
macOS 10.15 or Later
Windows 10.1803 or Later
Windows 11
iPadOS
*As of July, 2022: Check with manufacturer for the most up-to-date compatibility
Included Software
No
Compatible Software (Not Included)
Any Core Audio (Mac) Compliant Software
Mobile App Compatible
No
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Mobile Device Compatibility
iPad
Power
Power Requirements
AC/DC Power Adapter (Included) or USB Bus Power
AC/DC Power Adapter
15 VDC at 2 A (Included)
