Imaging
Sensor Type: 1"-Type CMOS Sensor
Sensor Resolution: Actual: 13.4 Megapixel
Effective: 8.29 Megapixel (3840 x 2160)
IR Cut Filter: No
Built-In ND Filter:
Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Image Stabilization: Optical in Integrated Lens
Focus Control: Autofocus, Manual Focus

Exposure Control
Shutter Type: Electronic Rolling Shutter
Shutter Speed: 1/2000 to 1/3 Second
Gain: 6 to 33dB
Minimum Illumination 1.5 Lux at 1/30 Shutter Speed
Flip/Mirror Support Image Flip, Mirror (Vertical)
White Balance 2000 to 15,000K
Presets: AWB, Manual, Set A, Set B

Lens
Focal Length:
8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm)
Optical Zoom Ratio: 15x
Max Digital Zoom: 20x
Field of View Horizontal: 5.7 to 73°
Vertical: 3.2 to 45.2°
Maximum Aperture: f/2.8 to 4.5
Minimum Focus Distance: 1.0 cm
Telephoto: 60.0 cm

Video Capture
External Recording Modes:
4:2:2 10-Bit via HDMI
3840 x 2160 at 23.98/25/29.97 fps
1920 x 1080p at 23.98/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
4:2:2 10-Bit via SDI/BNC
1920 x 1080p at 23.98/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
4:2:0 8-Bit via RJ45
3840 x 2160 at 5/14.99/29.97 fps
1920 x 1080p at 5/14.99/29.97/59.94 fps
1280 x 720 at 5/14.99/29.97/59.94 fps
640 x 360 at 5/14.99/29.97/59.94 fps
Embedded Audio: SDI
Broadcast Output: NTSC/PAL
Gamma Curve:
Canon Log 3, Rec709, Standard, Wide DR
IP Streaming:
H.264, H.265, NDI|HX, RTMP, RTP, RTSP
3840 x 2160 at 5.00p, 14.99p, 29.97p
1920 x 1080 at 5.00p, 14.99p, 29.97p, 59.94p
1280 x 720 at 5.00p, 14.99p, 29.97p, 59.94p
640 x 360 at 5.00p, 14.99p, 29.97p, 59.94p
IP Multi-Stream Support:
Simultaneous H.264: UHD 4K, 1080p, 720p, 360p

Control
Presets: 100 via IP, VISCA
Move Speed:
Pan: 0.1 to 100°/sec
Tilt: 0.21 to 100°/sec
Movement Range:
Pan: 340° (-170 to 170°)
Tilt: 130° (-30 to 90°)
Tally Light: Yes
Supported Control Protocols:
Canon XC
IR
RS-422
VISCA
Interface
Video I/O:
1 x BNC (3G-SDI) Output
1 x HDMI Output
1 x RJ45 (NDI) Output
Audio I/O:
2 x XLR 3-Pin Microphone Input
1 x 1/8" / 3.5 mm TRS Stereo Microphone Input
Other I/O:
1 x RJ45 (RS-422, VISCA) Input
1 x USB-A Input
1 x BNC (Genlock) Input/Output

Power
PoE Support: PoE+ 802.3at
Power I/O: 1 x Barrel (24VDC) Input
Power Consumption: PoE: 19.6 W
Power Supply: 24 VDC 18.6 W

Environmental
Operating Temperature:
32 to 104°F / 0 to 40°C
Storage Temperature:
32 to 104°F / 0 to 40°C
Operating Humidity: 10 to 90%
Storage Humidity: 10 to 90%

General
OS Compatibility: macOS 11
Windows: 10 (64-Bit Only)
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
App Compatible: Yes: Android & iOS
Functionality: Adjust Settings, Remote Control, Setup
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility

In the Box

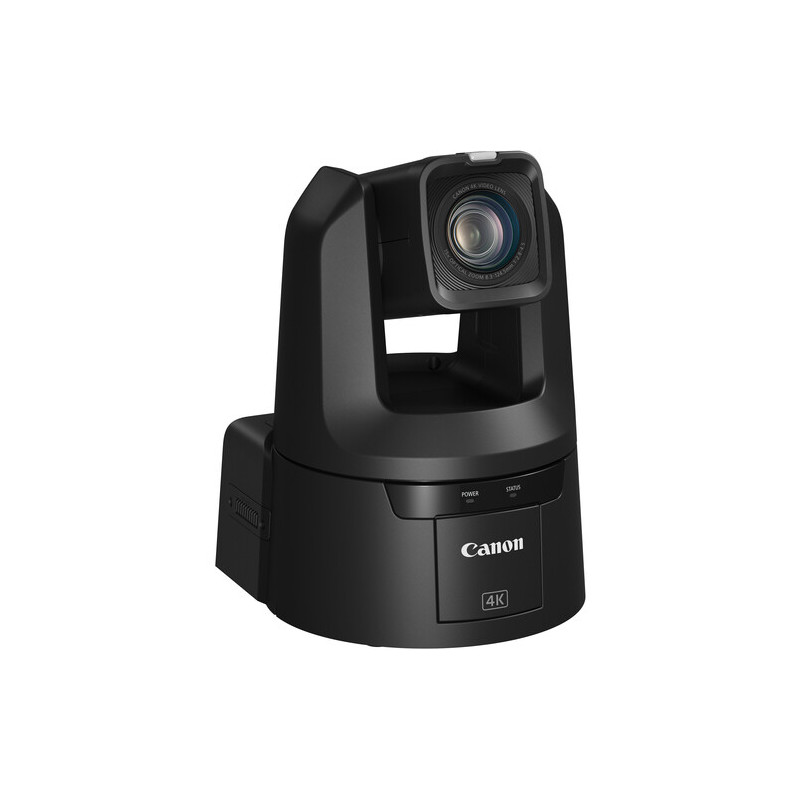

Canon CR-N500 Professional 4K NDI PTZ Camera with 15x Zoom (Satin Black)
IR Remote Control
Remote Battery
Safety Wire
Safety Wire with Screw
Ceiling Plate
AC Adapter
Power Cable
