FeelWorld 4K12X Specs
Key Specs

Image Sensor  1/2.8"-Type CMOS
Sensor Resolution
Effective: 8.51 Megapixel
Shutter Speed  1/20000 to 1/25 Second
Optical Zoom Ratio  12x
Max Digital Zoom 15x
External Recording Modes  HDMI / RJ45 / USB
3840 x 2160 at 25/30.00 fps
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Broadcast Output
NTSC/PAL
IP Streaming
H.264, MJPEG
320 x 240 to 3840 x 2160
NV12, YUY2
1920 x 1080 at 5.00p, 10p
1280 x 720 at 5.00p, 10p, 15p, 20p, 25p
800 x 600
1024 x 576
800 x 448
640 x 360
480 x 270
320 x 180 at 5.00p, 10p, 15p, 20p, 25p, 30p
Supported Control Protocols
Pelco-D
Pelco-P
VISCA
PoE Support
PoE 802.3af
Imaging
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 8.51 Megapixel
Focus Control
Autofocus
Manual Focus

Exposure Control
Shutter Speed
1/20000 to 1/25 Second
Signal-to-Noise Ratio
50 dB
Minimum Illumination
0.5 Lux
White Balance
Presets: Auto, Color Temperature, Manual
Lens
Optical Zoom Ratio
12x
Max Digital Zoom
15x
Field of View
Horizontal: 80.5°
Maximum Aperture
f/1.8 to 3.6
Video Capture
External Recording Modes
HDMI / RJ45 / USB
3840 x 2160 at 25/30.00 fps
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Embedded Audio
USB
Audio Recording
AAC Audio
Broadcast Output
NTSC/PAL
IP Streaming
H.264, MJPEG
320 x 240 to 3840 x 2160
NV12, YUY2
1920 x 1080 at 5.00p, 10p
1280 x 720 at 5.00p, 10p, 15p, 20p, 25p
800 x 600
1024 x 576
800 x 448
640 x 360
480 x 270
320 x 180 at 5.00p, 10p, 15p, 20p, 25p, 30p
IP Multi-Stream Support

Selectable Combination
H.264, MJPEG: UHD 4K, 1080p, 720p, 480p, 360p
NV12, YUY2: 1080p, 720p, 480p, 360p
Control
Presets
255 via IP
10 via IR
Pan/Tilt
Pan: 340° (-170 to 170°) at 0.1 to 45°/s
Tilt: 60° (-30 to 30°) at 0.1 to 30°/s
Tally Light
No
Supported Control Protocols
Pelco-D
Pelco-P
VISCA

Interface
Video I/O
1x HDMI (Unspecified Signal) Output
1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
1x RJ45 LAN Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O
1x Block 3-Pin (RS-232) Control Input

Power
PoE Support
PoE 802.3af
Power I/O
1x DC (12VDC at 1 A) Input
Power Consumption
Device: 12 W

Environmental
Operating Conditions
 -10 to 50°C at 20 to 80% Humidity
Storage Conditions
-10 to 70°C at 20 to 95% Humidity

General
Dimensions (W x H x D)
130.46 x 118.44 x 165.34 mm
Weight
1.03 kg (Body Only)

Items Included

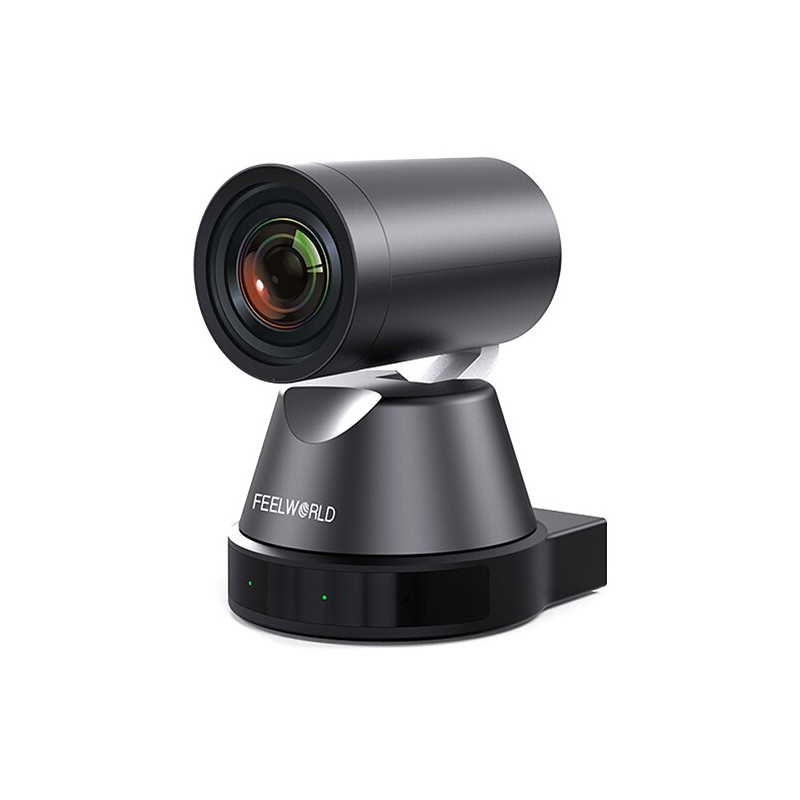

FeelWorld 4K12X UHD 4K HDMI/USB PTZ Camera with 12x Optical Zoom
Remote Control
Wall Mount Bracket
RS-232 Terminal Block
USB-C to USB-A Cable
Power Adapter
