Canon RC-IP1000 Specs

Key Specs
Number of Supported Cameras
200 Channels via IP (10 Per Group)
Control I/O
1x RJ45 (IP Control) Output
5x RJ45 (RS-422) Output
Video I/O
1x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output
1x HDMI Output
Controls
1x Pan/Tilt Joystick
1x Zoom Rocker
4x Programmable Knobs
13x Multifunction Buttons
10x Camera Selection Buttons
Touchscreen
Yes
PoE Support
PoE+ 802.3at
Security Lock Support
No

General
Number of Supported Cameras
200 Channels via IP (10 Per Group)
Supported Control Protocols
Canon XC
NU
RS-422
Control I/O
1x RJ45 (IP Control) Output
5x RJ45 (RS-422) Output
Other I/O
1x D-Sub 25-Pin (GPI, Tally) Input
1x D-Sub 25-Pin (GPI, Tally) Output
2x USB-A (3.0 / 3.1/3.2 Gen 1) Input
Video I/O
1x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output
1x HDMI Output
Controls
1x Pan/Tilt Joystick
1x Zoom Rocker
4x Programmable Knobs
13x Multifunction Buttons
10x Camera Selection Buttons
Presets
100 via IP
Display
Display Size
18cm
Native Resolution
800 x 480
Touchscreen
Yes

Power
PoE Support
PoE+ 802.3at
Power Connectors
1x XLR 4-Pin
Input Power
12 VDC
Physical
Operating Conditions
32 to 72°F / 0 to 40°C
Security Lock Support
No
Dimensions
342 x 245 x 145 mm
Weight
3.5 kg

In the Box

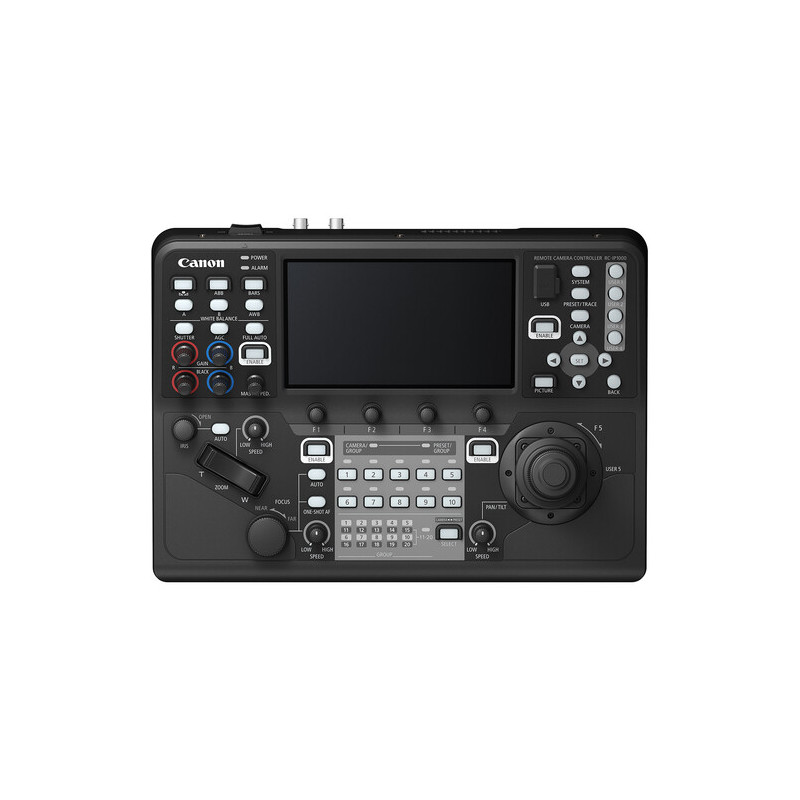

Canon RC-IP1000 Advanced PTZ Controller
