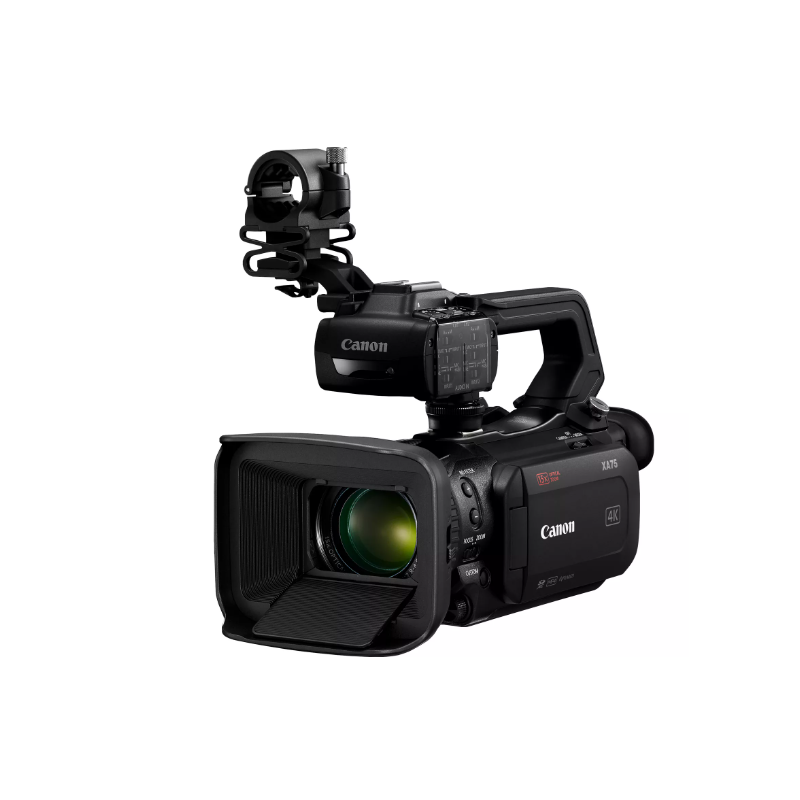

Canon XA75 Specs

Key Specs
Sensor Resolution
Actual: 13.4 Megapixel (4268 x 3148)
Effective: 8.29 Megapixel (3840 x 2160)
Image Sensor
1"-Type CMOS
Image Stabilization
Optical in Integrated Lens

Digital
Internal Recording Modes
H.264/MP4 4:2:0 8-Bit
3840 x 2160 at 23.98/24.00/29.97 fps
1920 x 1080p at 23.98/24.00/29.97/59.94 fps [35 to 45 Mb/s]
1280 x 720 at 59.94 fps [8 Mb/s]
XF-AVC 4:2:0 8-Bit
3840 x 2160 at 23.98/24.00/29.97 fps
1920 x 1080p at 23.98/24.00/29.97/59.94 fps
External Recording Modes
4:2:2 8-Bit via SDI/BNC / HDMI
1920 x 1080p at 23.98/29.97 fps
1920 x 1080i at 59.94 fps
1280 x 720 at 59.94 fps
4:2:2 10-Bit via SDI/BNC / HDMI
1920 x 1080p at 23.98/29.97/59.94 fps
1920 x 1080i at 59.94 fps
1280 x 720 at 59.94 fps
Media/Memory Card Slot
Dual Slot: SD/SDHC/SDXC (UHS-I)
Video I/O
1x Mini-HDMI 2.0 Output
1x BNC (3G-SDI) Output
1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Mobile App Compatible No
Battery Type
Canon BP-8 Series

Imaging
Sensor Resolution
Actual: 13.4 Megapixel (4268 x 3148)
Effective: 8.29 Megapixel (3840 x 2160)
Image Sensor
1"-Type CMOS
Image Stabilization
Optical in Integrated Lens
Digital
Built-In ND Filter
Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Capture Type
Stills & Video
Exposure Control
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/2000 to 1 Second
Minimum Illumination
1.7 Lux at 1/30 Shutter Speed
0.1 Lux at 1/2 Shutter Speed
White Balance
2000 to 15,000K
Lens
Focal Length
8.3 to 124.5mm (35mm Equivalent: 25.5 to 382.5mm)
Optical Zoom Ratio 15x
Maximum Aperture
f/2.8 to 4.5
Minimum Focus Distance
Wide: 0.4" / 1.0 cm
Entire Zoom Range: 23.6" / 60.0 cm
Filter Size 58 mm
Focus Control
Autofocus
Manual Focus
Video Capture
Internal Recording Modes
H.264/MP4 4:2:0 8-Bit
3840 x 2160 at 23.98/24.00/29.97 fps
1920 x 1080p at 23.98/24.00/29.97/59.94 fps [35 to 45 Mb/s]
1280 x 720 at 59.94 fps [8 Mb/s]
XF-AVC 4:2:0 8-Bit
3840 x 2160 at 23.98/24.00/29.97 fps
1920 x 1080p at 23.98/24.00/29.97/59.94 fps
External Recording Modes
4:2:2 8-Bit via SDI/BNC / HDMI
1920 x 1080p at 23.98/29.97 fps
1920 x 1080i at 59.94 fps
1280 x 720 at 59.94 fps
4:2:2 10-Bit via SDI/BNC / HDMI
1920 x 1080p at 23.98/29.97/59.94 fps
1920 x 1080i at 59.94 fps
1280 x 720 at 59.94 fps
Fast-/Slow-Motion Support
Yes
Broadcast Output
NTSC
Built-In Microphone
Stereo
Audio Recording
MP4: 2-Channel 16-Bit AAC Audio
MP4: 4-Channel 16-Bit LPCM Audio
XAVC: 4-Channel 24-Bit LPCM Audio
IP Streaming No

Interface
Media/Memory Card Slot
Dual Slot: SD/SDHC/SDXC (UHS-I)
Video I/O
1x Mini-HDMI 2.0 Output
1x BNC (3G-SDI) Output
1x USB-C 3.0 / 3.1/3.2 Gen 1 Output

Audio I/O
2x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
1x 1/8" / 3.5 mm TRS Stereo Headphone Input
1x 1/8" / 3.5 mm TRS Stereo Microphone Input

Power I/O
1x USB-C Input
Other I/O
1x 2.5 mm Sub-Mini (LANC) Control Input
Wireless No
Mobile App Compatible No
Global Positioning (GPS, GLONASS, etc.) No

Monitor
Display Type
Articulating Touchscreen LCD
Display Size 3.5"
Resolution
2,760,000 Dot

Viewfinder
Type
Built-In Electronic (LCD)
Size
0.36"
Resolution
1,770,000 Dot

Focus
Focus Type
Auto and Manual Focus
Focus Mode
Automatic, Manual Focus

Environmental
Operating Temperature
32 to 104°F / 0 to 40°C (Recommended)
Storage Temperature
23 to 113°F / -5 to 45°C
Operating Humidity 85%
Storage Humidity 60%

General
Battery Type
Canon BP-8 Series
Power Consumption
5.3 W
Shoe Mount
1x Cold Shoe
Tripod Mounting Thread
1/4"-20 Female
Accessory Mounting Thread
No
