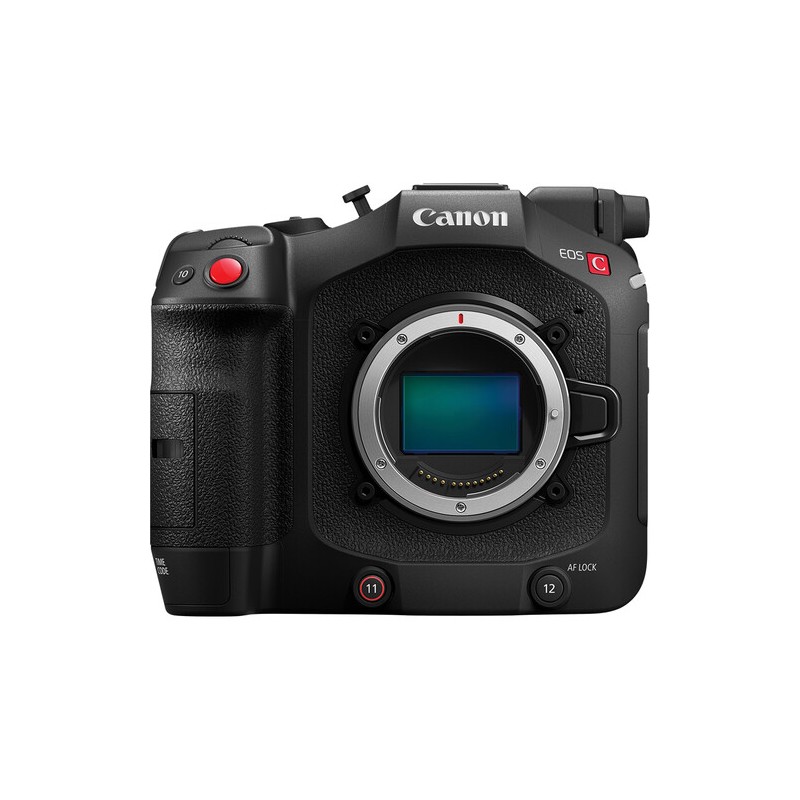

Canon C80 Specs
Lens Mount Canon RF
Sensor Resolution Actual: 26.67 Megapixel (6202 x 4300)
Effective: 19.05 Megapixel (6008 x 3170)
Image Sensor  Full-Frame BSI Stacked CMOS
Image Stabilization Digital, 5-Axis
ISO Sensitivity Range 100 to 102,400
Internal Recording Modes Cinema RAW Light 12-Bit
UHD 6K (6000 x 3164) at 23.98/24.00/25/29.97 fps [553 to 639 Mb/s]
4368 x 2304 at 23.98/24.00/25/29.97/50/59.94 fps [293 to 678 Mb/s]
XF-AVC S Intra 4:2:2 10-Bit
4096 x 2160 at 59.94/60.00 fps [600 Mb/s]
3840 x 2160 at 50/60.00 fps [500 Mb/s]
2048 x 2160 at 59.94/120 fps [300 Mb/s]
1920 x 1080 at 50/120 fps [250 Mb/s]
XF-AVC S Intra 4:2:2 10-Bit
4096 x 2160 at 50/59.94/120 fps [250 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [150 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [50 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [120 to 300 Mb/s]
XF-AVC S Long GOP 4:2:0 8-Bit
4096 x 2160 at 50/59.94/120 fps [150 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [100 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
XF-HEVC S Intra 4:2:0 8-Bit
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [9 to 16 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/60.00 fps [9 to 16 Mb/s]
1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps [6 Mb/s]
XF-HEVC S Long GOP 4:2:2 10-Bit
4096 x 2160 at 50/59.94/120 fps [225 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [135 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/180 fps [50 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/180 fps [50 Mb/s]
XF-HEVC S Long GOP 4:2:0 10-Bit
4096 x 2160 at 50/59.94/120 fps [150 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [100 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/59.94/180 fps [35 Mb/s]
XF-HEVC S Long GOP 4:2:0 10-Bit
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/60.00 fps [9 to 16 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [9 to 16 Mb/s]
XF-HEVC S Long GOP 4:2:0 8-Bit
1280 x 720 at 23.98/24.00/25/50/59.94 fps [6 Mb/s]
External Recording Modes
SDI/BNC / HDMI / USB
4096 x 2160
Media/Memory Card Slot
Slot 1: SD/SDHC/SDXC
Slot 2: SD/SDHC/SDXC
Video I/O
1x BNC (12G-SDI) Output
1x HDMI (Unspecified Signal) Output
Mobile App Compatible
Yes: iOS Only
App Name: Remote Camera Control App
Functionality: Adjust Settings, Remote Control, View Live Feed
Battery Type
Canon BP-AN Series
Imaging
Lens Mount
Canon RF
Lens Communication
Yes, Cooke /i
Sensor Resolution
Actual: 26.67 Megapixel (6202 x 4300)
Effective: 19.05 Megapixel (6008 x 3170)
Image Sensor
Full-Frame BSI Stacked CMOS
Image Stabilization
Digital, 5-Axis
Built-In ND Filter
Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64), 8-Stop (1/256), 10-Stop (1/1024) ND Filters
Internal Filter Holder No
Capture Type Stills & Video
Exposure Control
Shutter Type Electronic Rolling Shutter
Shutter Speed 1/2000 to 1 Second
ISO Sensitivity Range 100 to 102,400
Shutter Angle 11.25 to 360°
Advertised Dynamic Range 16 Stops
White Balance
Range: 2000 to 15,000K
Presets: AWB, Daylight, Set A, Set B, Tungsten
Video Capture
Internal Recording Modes
Cinema RAW Light 12-Bit
UHD 6K (6000 x 3164) at 23.98/24.00/25/29.97 fps [553 to 639 Mb/s]
4368 x 2304 at 23.98/24.00/25/29.97/50/59.94 fps [293 to 678 Mb/s]
XF-AVC S Intra 4:2:2 10-Bit
4096 x 2160 at 59.94/60.00 fps [600 Mb/s]
3840 x 2160 at 50/60.00 fps [500 Mb/s]
2048 x 2160 at 59.94/120 fps [300 Mb/s]
1920 x 1080 at 50/120 fps [250 Mb/s]
XF-AVC S Intra 4:2:2 10-Bit
4096 x 2160 at 50/59.94/120 fps [250 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [150 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [50 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [120 to 300 Mb/s]
XF-AVC S Long GOP 4:2:0 8-Bit
4096 x 2160 at 50/59.94/120 fps [150 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [100 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
XF-HEVC S Intra 4:2:0 8-Bit
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [9 to 16 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/60.00 fps [9 to 16 Mb/s]
1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps [6 Mb/s]
XF-HEVC S Long GOP 4:2:2 10-Bit
4096 x 2160 at 50/59.94/120 fps [225 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [135 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/180 fps [50 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/180 fps [50 Mb/s]
XF-HEVC S Long GOP 4:2:0 10-Bit
4096 x 2160 at 50/59.94/120 fps [150 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [100 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/59.94/180 fps [35 Mb/s]
XF-HEVC S Long GOP 4:2:0 10-Bit
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/60.00 fps [9 to 16 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [9 to 16 Mb/s]
XF-HEVC S Long GOP 4:2:0 8-Bit
1280 x 720 at 23.98/24.00/25/50/59.94 fps [6 Mb/s]
External Recording Modes
SDI/BNC / HDMI / USB
4096 x 2160
Recording Sensor Crop
Crops to Output Resolution When Using Super35 Mode
Fast-/Slow-Motion Support Yes
Gamma Curve Canon Log 2, Canon Log 3, HDR-HLG, Rec709, Rec2020
Built-In Microphone Stereo
Audio Recording
Cinema RAW Light: 4-Channel 24-Bit 48 kHz LPCM Audio
XF-AVC: 4-Channel 24-Bit 48 kHz LPCM Audio
XF-AVC S, XF-HEVC S: 4-Channel 24-Bit 48 kHz LPCM Audio
XF-AVC S, XF-HEVC S: 2-Channel 16-Bit 48 kHz AAC Audio
IP Streaming
H.264, MPEG2, RTP, RTSP, SRT, UDP
1920 x 1080 at 50i, 50p, 59.94i, 59.94p (4.0 to 9.0 Mb/s)
Interface
Media/Memory Card Slot
Slot 1: SD/SDHC/SDXC
Slot 2: SD/SDHC/SDXC
Video I/O
1x BNC (12G-SDI) Output
1x HDMI (Unspecified Signal) Output
Audio I/O
2x Mini XLR Input
1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O
1x Barrel (23.7 to 25VDC) Input
Other I/O
1x RJ45 (XC) Control
1x USB-C Monitor
1x BNC (Timecode) (Shared with Video Output)
1x 2.5 mm Sub-Mini (LANC) Control
Wireless
2.4 / 5 GHz Wi-Fi 5 (802.11ac)
Mobile App Compatible Yes: iOS Only
App Name: Remote Camera Control App
Functionality: Adjust Settings, Remote Control, View Live Feed
Global Positioning (GPS, GLONASS, etc.) No
Monitor
Display Type Primary Monitor: Included External 3.5" Touchscreen LCD
Resolution Primary Monitor: 1280 x 720
Focus
Focus Mode Continuous-Servo AF, Focus Lock AF Area Mode, Manual Focus, One-Shot AF
Power
Battery Type Canon BP-AN Series
Power Consumption ≤19.6 W
Environmental Operating Conditions
0 to 40°C up to 85% Humidity
Storage Conditions  -5 to 45°C up to 60% Humidity
General
Shoe Mount 1x Intelligent Hot Shoe
Tripod Mounting Thread
1x 3/8"-16 Female
2x 1/4"-20 Female
Accessory Mounting Thread No
Dimensions (W x H x D) 160 x 138 x 116 mm
 276 x 173 x 160 mm (With Handle, Included Battery, Mic Holder)
Weight 1.30 kg (Body Only)
1.545 kg (With Battery, Handle)
Items Included
Canon EOS C80 6K Full-Frame Cinema Camera (Canon RF)
Canon BP-A30N Battery Pack
Handle Unit
Canon CA-CP300B Compact Power Adapter
Canon Single Battery Charger for EOS C300 Mark II, C200, and C200B Batteries
Microphone Holder
SS-1200 Shoulder Strap
Tape Measure Hook
Grip Belt
