Sony PXW-Z200Specs

Key Specs

Sensor Resolution

Actual: 20.9 Megapixel

Effective: 14 Megapixel

Image Sensor

13.2 x 8.8 mm (1"-Type) CMOS

Image Stabilization

Optical in Integrated Lens

Digital

ISO Sensitivity Range

250 to 16,000

Internal Recording Modes

XAVC HS-L

3840 x 2160 at 23.98/50/59.94/100/120 fps [30 to 280 Mb/s]

XAVC S-I

3840 x 2160 at 23.98/25/29.97/50/59.94 fps [240 to 600 Mb/s]

1920 x 1080p at 23.98/25/29.97/50/59.94/100/120/150/180/200 fps

XAVC S-L

3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps [100 to 280 Mb/s]

1920 x 1080p at 23.98/25/29.97/50/59.94/100/120/150/180/200/240 fps

External Recording Modes

HDMI

3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps

1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps

1920 x 1080i at 25/29.97/50/59.94/100/120 fps

SDI/BNC

3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps

1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps

1920 x 1080i at 50/59.94/100/120 fps

1920 x 1080PsF at 23.98/25/29.97 fps

Media/Memory Card Slot

Dual Slot: CFexpress Type A / SD (UHS-II)

Video I/O

1x BNC (12G-SDI) Output

1x HDMI (Unspecified Signal) Output

Mobile App Compatible

Yes: Android & iOS

Battery Type

Sony BP-U Series

Imaging

Sensor Resolution

Actual: 20.9 Megapixel

Effective: 14 Megapixel

Image Sensor

13.2 x 8.8 mm (1"-Type) CMOS

Image Stabilization

Optical in Integrated Lens

Digital

Built-In ND Filter

2 to 7 Stop Electronic ND Filter

Capture Type

Video Only

Exposure Control

Shutter Type

Electronic Rolling Shutter

Shutter Speed

1/8000 to 64 Seconds

ISO Sensitivity Range

250 to 16,000

Gain

-3 to 36 dB

Shutter Angle

5.6 to 360°

Minimum Illumination

1.2 Lux

Lens

Focal Length

7.71 to 154.21mm (35mm Equivalent: 24 to 480mm)

Optical Zoom Ratio

20x

Max Digital Zoom

1.5x ( in UHD 4K)

2x ( in 1080p)

Maximum Aperture

f/2.8 to 4.5

Minimum Focus Distance

0.4" / 1.0 cm

Filter Size

72 mm

Focus Control

Autofocus

Manual Focus

Video Capture

Internal Recording Modes

XAVC HS-L

3840 x 2160 at 23.98/50/59.94/100/120 fps [30 to 280 Mb/s]

XAVC S-I

3840 x 2160 at 23.98/25/29.97/50/59.94 fps [240 to 600 Mb/s]

1920 x 1080p at 23.98/25/29.97/50/59.94/100/120/150/180/200 fps

XAVC S-L

3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps [100 to 280 Mb/s]

1920 x 1080p at 23.98/25/29.97/50/59.94/100/120/150/180/200/240 fps

External Recording Modes

HDMI

3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps

1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps

1920 x 1080i at 25/29.97/50/59.94/100/120 fps

SDI/BNC

3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps

1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps

1920 x 1080i at 50/59.94/100/120 fps

1920 x 1080PsF at 23.98/25/29.97 fps

Fast-/Slow-Motion Support

Yes

Gamma Curve

HDR-HLG, Rec709, S Cinetone, Sony S-Log 3

Broadcast Output

NTSC/PAL

Built-In Microphone

Stereo

Audio Recording

4-Channel 24-Bit 48 kHz LPCM Audio

IP Streaming

H.264, H.265, RTMP, RTMPS, SRT

3840 x 2160 at 50p, 59.94p (38.00 Mb/s)

3840 x 2160 at 23.98p, 25p, 29.97p (13.00 to 38.00 Mb/s)

1920 x 1080 at 50p, 59.94p (4.5 to 27.00 Mb/s)

1920 x 1080 at 23.98p, 25p, 29.97p (3.0 to 18.00 Mb/s)

1280 x 720 at 50p, 59.94p (2.3 to 13.5 Mb/s)

1280 x 720 at 23.98p, 25p, 29.97p (1.5 to 9.0 Mb/s)

Interface

Media/Memory Card Slot

Dual Slot: CFexpress Type A / SD (UHS-II)

Video I/O

1x BNC (12G-SDI) Output

1x HDMI (Unspecified Signal) Output

Audio I/O

2x XLR 3-Pin Input

1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output

1x 1/8" / 3.5 mm TRS Stereo Input

Power I/O

1x USB-C

Other I/O

1x BNC (Timecode) Input/Output

1x 2.5 mm Sub-Mini (Remote) Control

1x RJ45 (LAN) Control

1x USB-C (USB 3.2 / 3.1 Gen 1)

Wireless

2.4 / 5 GHz Wi-Fi 5 (802.11ac)

Mobile App Compatible

Yes: Android & iOS

Global Positioning (GPS, GLONASS, etc.)

No

Viewfinder

Type

Built-In Electronic

Size

10mm

Diopter Adjustment

-4 to +3

Focus

Focus Type

Auto and Manual Focus

Autofocus Points

Phase Detection: 475

General

Operating Conditions

0 to 40°C

Storage Conditions

 -20 to 60°C

Battery Type

Sony BP-U Series

Power Consumption

20 W

Shoe Mount

1x Intelligent Hot Shoe

Dimensions (W x H x D)

 175.6 x 201.3 x 371.6 mm

Weight

1.96 kg (Body Only)

In the Box

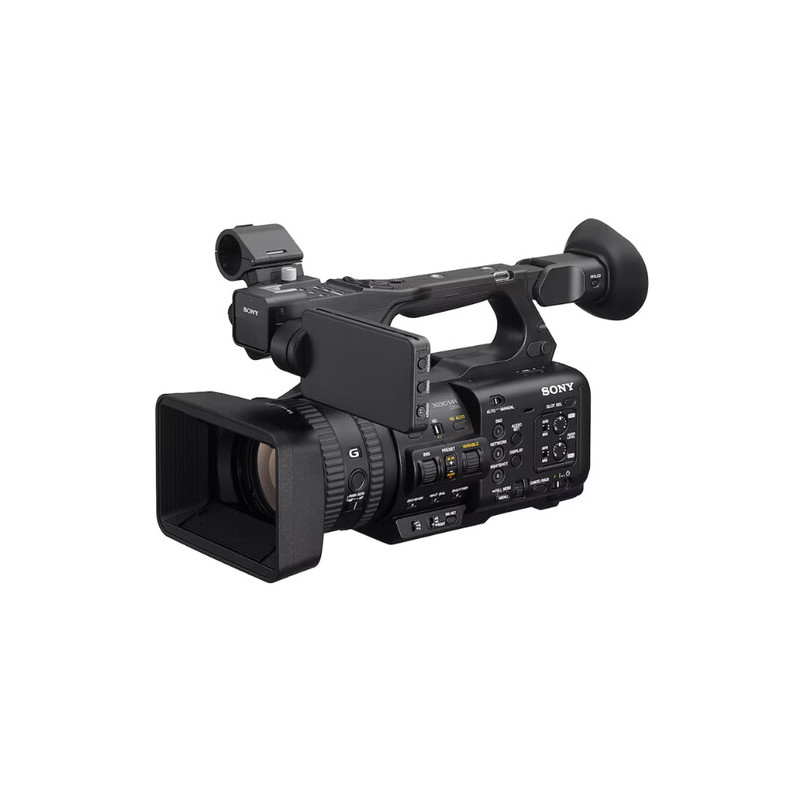

Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder

AC Adapter

Power Cord

Battery Charger

Battery Pack

LCD Hood

Lens Hood

Eyecup

Microphone Holder

Cold Shoe Kit
