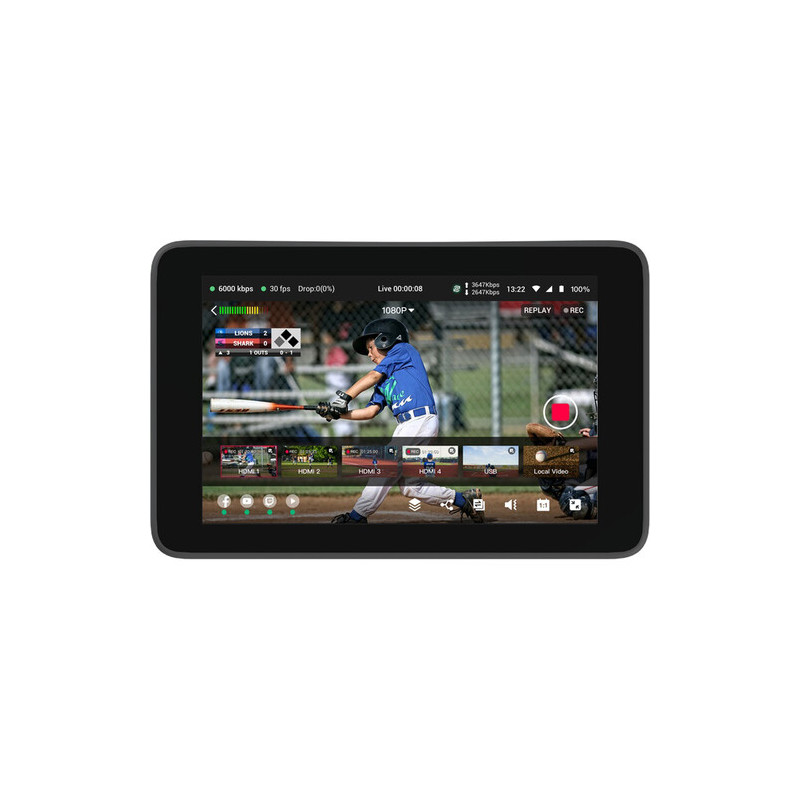

YoloLiv YoloBox Ultra Specifications

IP Video

H.264/H.265:

3840 x 2160 at 30p Encoding

1920 x 1080 Encoding

1280 x 720 Encoding

640 x 480 Encoding

IP Audio AAC: Encoding

Simultaneous Streams 3 Streams

Video I/O

4x HDMI Input

1x HDMI Output

2x USB-A

Embedded Audio HDMI/USB

Recording Media 1x SD (Unspecified Type)

Recording Modes 3840 x 2160p (MP4)

Power Consumption (45 W)

Display LCD

IP Encoding/Decoding

IP Video

H.264/H.265:

3840 x 2160 at 30p Encoding

1920 x 1080 Encoding

1280 x 720 Encoding

640 x 480 Encoding

IP Audio AAC: Encoding

Transport Protocols RTMP, RTMPS, SRT

Simultaneous Streams 3 Streams

Compatible Services Facebook Live, Twitch, YouTube Live

Wireless

Wireless Wi-Fi 6 (802.11ax) / 4G *Built-In

Wi-Fi Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)

Bluetooth No

Cellular Support 4G LTE via Nano-SIM

4G Bands: 1 / 3 / 7 / 8

SIM Card Slots 1x Nano SIM

Interfaces

Video I/O

4x HDMI Input

1x HDMI Output

2x USB-A

Audio I/O

2x  3.5 mm TRS Input

1x 3.5 mm TRS Headphone Output

Other I/O

1x USB-C

1x RJ45 Gigabit Ethernet

Embedded Audio HDMI/USB

Internal Recording

Recording Media 1x SD (Unspecified Type)

Recording Modes 3840 x 2160p (MP4)

Power

Power I/O

1x USB-A (5 VDC at 1 A) Output

1x USB-C (15 VDC at 3 A) Input

Power Consumption (45 W)

General

Operating Conditions 0 to 40°C at 15 to 85% Humidity

Display LCD

Certifications FCC Part 15 Class B, EU Directive 2014/53/EU

Dimensions 219 x 140 x 27.1 mm

Weight 980 g

Packaging Info

Package Weight 2kg

Box Dimensions (LxWxH) 35 x 19 x 8 cm

In the Box

YoloLiv YoloBox Ultra All-in-One Multicamera Live Streaming and Switching System

2 x USB-C Charging Cable

Cold Shoe Mount

SIM Card Eject Pin
