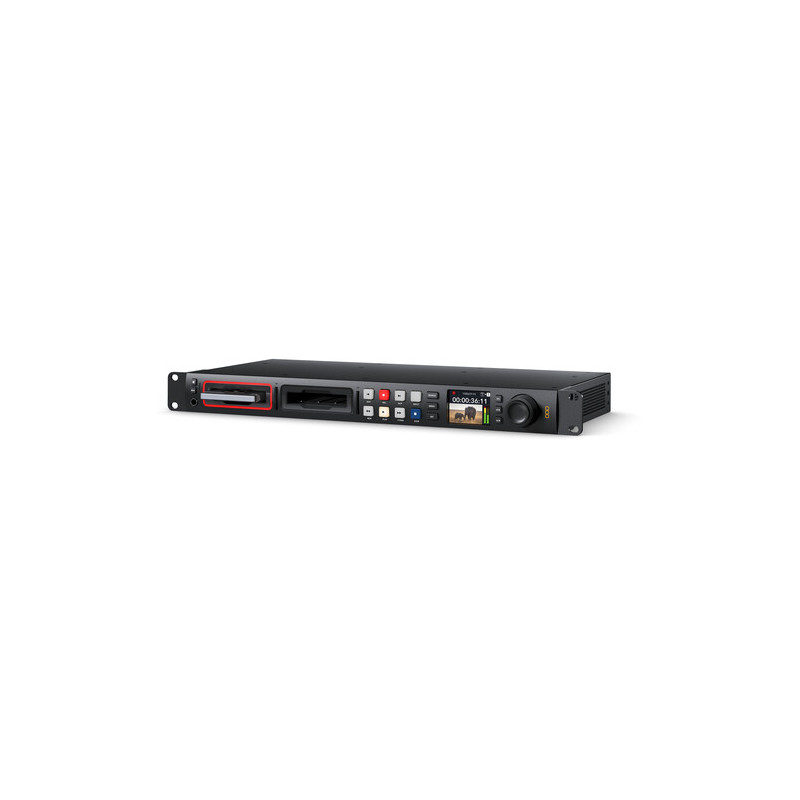

Blackmagic Design HyperDeck Studio HD ProSpecs

Video Inputs
1 x BNC 6G-SDI
1 x HDMI 2.0
Video Output
1 x BNC SDI Loop-Through
2 x BNC 6G-SDI
1 x SDI Monitor Output
1 x HDMI 2.0

Embedded Audio
Input:
16 x Channels SDI
16 x Channels HDMI
Output:
8 x Channels SDI
8 x Channels HDMI
Audio Output Connector
1 x 35mm Headphone Jack
Network
1 x RJ45 1 Gb/s
SSD Interface
2 x 63mm SATA 3Gb/s
Reference Input
1 x BNC
Reference Output
1 x BNC
Timecode Input
1 x BNC
Timecode Output
1 x BNC
Device Control
1 x RS-422 Input
1 x RS-422 Output

Display Size
55mm LCD
Speaker
Mono

Format Support
DCI/UHD 4K 2160p: 30/29.97/25/24/23.98
2K 1440p: 30/29.97/25/24/23.98
1080p: 60/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
NTSC/PAL
525i 59.94
625i 50
480p60 and 576p50 via HDMI only

Supported Operating Systems
macOS 10.15 Catalina
macOS 11.1 Big Sur or Later
Windows 10, 64-Bit
Other Outputs
1 x USB Type-C for External Recording or Webcam Use
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2084, and SMPTE 2108-1
SDI Metadata Support
HD RP188 and closed captioning CEA‑708
HDR Metadata supported on SDI
Sampling
Video: 4:2:2 YUV
Audio: 24-Bit, 48 kHz
Color Precision
10-Bit
Color Space
REC 601, REC 709, REC 2020
3D LUTS can be Applied to SDI Monitor Out
Multiple Rate Support
Auto-Detection of SD, HD and 6G-SDI
HDR Support
Hybrid Log Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Codecs Supported
ProRes HQ QuickTime
ProRes 422 QuickTime
ProRes LT QuickTime
ProRes Proxy QuickTime for all Formats up to 2160p30
Playback only of:
ProRes 4444 QuickTime up to 1080p60 with Auto Routing of Fill and Key over SDI A and B Outputs
DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD Formats up to 60 fps
DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p Formats up to 30 fps
H.264 SDI 4:2:2 10-Bit, H.264 High 4:2:0 8-Bit, H.264 Medium 4:2:0 8-Bit, H.264 Low 4:2:0 8-Bit for all Progressive Formats up to 1080p60
Media Slots
2 x 63mm SSD
2 x SD Card
Rack Size
1 RU

Power Input
1 x 110 to 240 VAC, 50/60 Hz Power Input
1 x 12 VDC, 4-Pin XLR Input
Power Consumption
100 W Maximum
Operating Temperature
 0 to 40°C
Storage Temperature
 -20 to 60°C
Relative Humidity
0 to 90% Non-Condensing

Dimensions
48.3 x 23.6 x 4.4 cm
Weight 2.1 kg
